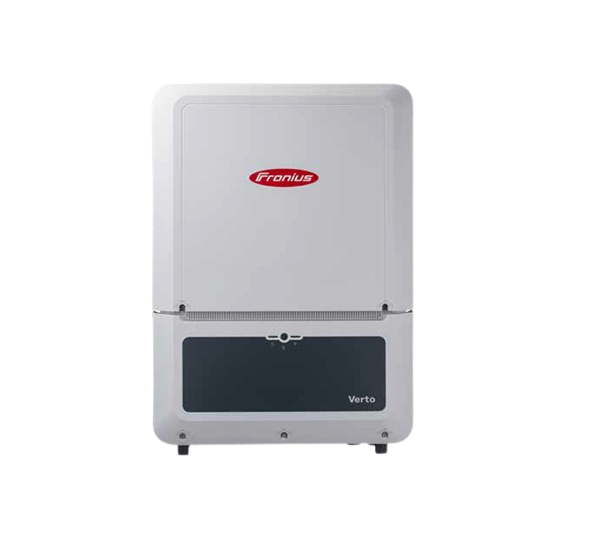

Verto 20.0 SPD 1+2
PV-WR, 3 MPPT, 3-phasig, SPD DC Typ 1+2 / AC Typ 2
Art. no.
6659331
Manufacturer No.
4,210,424
Product details
Product information "Verto 20.0 SPD 1+2"
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| DC connector type | MC4 |
| Min. voltage range input (V) | 150 |
| Max. input current DC (A) total | 84.00 |
| MPP min. voltage range input (V) | 150.00 |
| Min. temperature ambient (°C) | -40 |
| Protection degree | IP66 |
| Start input voltage (V) | 150 |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| Max. efficiency (%) | 99.56 |
| Max. output current (A) | 26.50 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Max. AC power (kVA) | 20.00 |
| Total number of string inputs | 4 |
| Max. short circuit current (A) total | 100.00 |
| Display | w/o display |
| Max. short circuit current per MPPT (A) | 50 |
| AC nominal power (kW) | 20.00 |
| European efficiency (%) | 98.33 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 28 |
| Surge protection DC | type 1 and type 2 |
| Intrastat product number (HS-code) | 85044086 |
|---|---|
| Manufacturer item name | VERTO 20.0 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Height incl. packaging (cm) | 39.40 |
|---|---|
| Amount per Pallet | 9 |
| Pal. dim. LxBxH (mm) | 1200x800x2002 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 61.40 |
| Length incl. packaging (cm) | 80.00 |
| Weight incl. packaging (Kg) | 41.750 |
| Height without packaging (mm) | 278.00 |
|---|---|
| Width without packaging (mm) | 540.00 |
| Weight without packaging (kg) | 35.200 |
| Length without packaging (mm) | 730.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
