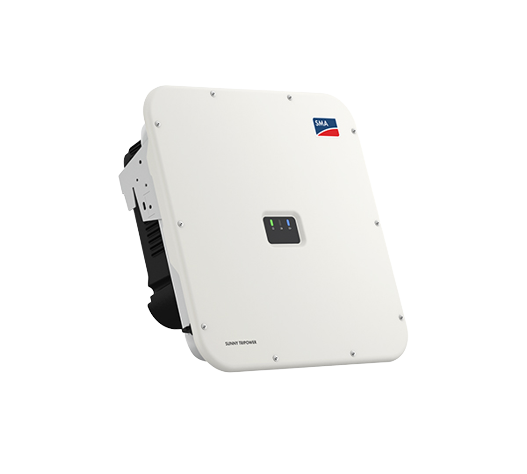

Sunny Tripower X 25
-
Art. no.
6651396
Manufacturer No.
03-25-1000-1-50
Product details
Product information "Sunny Tripower X 25"
inverter, 25kW, 3MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50/60Hz, w/DC switch, w/AFCI, DC SUNCLIX, integrated system manager function for up to 5 supported SMA inverters (max 135kVA) and one supported energy meter, Ethernet/WiFi, direct connection
Technical details
| Topology | transformerless |
|---|---|
| AC nominal power (kW) | 25.00 |
| Min. voltage range input (V) | 150 |
| Decibel | 59 |
| Surge protection DC | no |
| Total number of string inputs | 6 |
| Interface 2 | W-Lan |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. generator power DC (kWp) | 37.50 |
| Max. short circuit current (A) total | 112.50 |
| Number of independent MPPT (pcs) | 3 |
| Max. input voltage DC (V) | 1000.00 |
| MPP min. voltage range input (V) | 430.00 |
| Interface 1 | Ethernet |
| European efficiency (%) | 98.00 |
| Rapid shutdown | no |
| Contact ripple control receiver | yes with supply |
| Step-Up converter | yes |
| Surge protection AC | no |
| Display | w/o display |
| Start input voltage (V) | 188 |
| Degree of protection IP | IP65 |
| Max. input current DC (A) total | 72.00 |
| Max. short circuit current per MPPT (A) | 37,5 |
| Max. efficiency (%) | 98.20 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Max. input current per MPPT (A). | 24 |
| MPP max. voltage range input (V) | 800.00 |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. AC power (kVA) | 25.00 |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| String fuses | not included |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | SMA |
| Manufacturer item name | Sunny Tripower X 25-50 |
| Height incl. packaging (cm) | 88.00 |
|---|---|
| Weight incl. packaging (Kg) | 40.500 |
| Amount per Pallet | 6 |
| Pal. weight (kg) | 255.00 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 80.00 |
| Width incl. packaging (cm) | 40.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1890 |
| Height without packaging (mm) | 762.00 |
|---|---|
| Weight without packaging (kg) | 35.000 |
| Length without packaging (mm) | 266.00 |
| Width without packaging (mm) | 728.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
