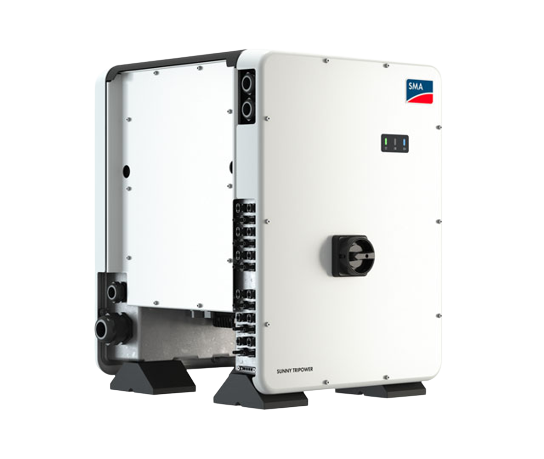

Sunny Tripower CORE1 STP 50-41
-
Art. no.
6643676
Manufacturer No.
03-50-1000-1-41
Product details
Product information "Sunny Tripower CORE1 STP 50-41"
inverter, 50kW, 6MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50/60Hz, w/out display, w/DC switch, w/AFCI, Ethernet/WiFi
Technical details
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| Max. short circuit current per MPPT (A) | 30 |
| Min. voltage range input (V) | 150 |
| Max. short circuit current (A) total | 180.00 |
| Surge protection DC | no |
| MPP min. voltage range input (V) | 500.00 |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 1000.00 |
| Total number of string inputs | 12 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Step-Up converter | yes |
| Surge protection AC | no |
| Max. input current per MPPT (A). | 20 |
| Display | w/o display |
| Start input voltage (V) | 188 |
| Degree of protection IP | IP65 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| MPP max. voltage range input (V) | 800.00 |
| Decibel | 65 |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Number of independent MPPT (pcs) | 6 |
| Max. output current (A) | 72.50 |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| Max. input current DC (A) total | 120.00 |
| AC nominal power (kW) | 50.00 |
| European efficiency (%) | 97.80 |
| Max. generator power DC (kWp) | 75.00 |
| String fuses | not included |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | Sunny Tripower CORE1 |
| Manufacturer | SMA |
| Amount per Pallet | 1 |
|---|---|
| Width incl. packaging (cm) | 73.30 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 88.000 |
| Pal. dim. LxBxH (mm) | 840x770x900 |
| Pal. weight (kg) | 106.00 |
| Length incl. packaging (cm) | 62.10 |
| Height incl. packaging (cm) | 76.90 |
| Length without packaging (mm) | 733.00 |
|---|---|
| Weight without packaging (kg) | 84.000 |
| Height without packaging (mm) | 569.00 |
| Width without packaging (mm) | 621.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
