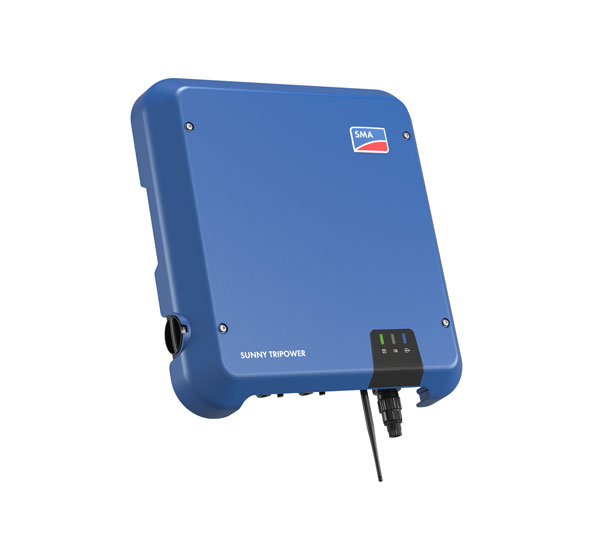

Sunny Tripower 8.0
String Inverter Sunny Tripower 8.0
Art. no.
6640097
Manufacturer No.
STP8.0-3AV-40
Product details
Product information "Sunny Tripower 8.0"
inverter, 8kW, 2MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50/60Hz, w/out display, w/DC switch, WLAN/Ethernet/RS485
kW/8.0kVA transformerless,with reactive power, with integrated W-LAN
and Ethernet based Speedwire/Webconnect communication interface,
incl. SMA Modbus abd SunSpecprotocol, integrated Webserver, TS4-communication interface, Multistring Technology, DC connection
SUNCLIX, incl. DC disconnect, Documentation in all European languages.
Technical details
| AC nominal power (kW) | 8.00 |
|---|---|
| Surge protection AC | no |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| DC connection | SUNCLIX |
| Surge protection DC | no |
| Decibel | 30 |
| Display | w/o display |
| Feed-in phases | 3 |
| European efficiency (%) | 97.70 |
| Protection degree | IP65 |
| Total number of string inputs | 3 |
| Integrated AC switch | no |
| Integrated DC switch | yes |
| UI curve diagnosis | no |
| Max. AC power (kVA) | 8.00 |
| Max. output current (A) | 12.10 |
| Max. generator power DC (kWp) | 15.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Max. input current per MPPT (A). | 20/12 |
| Max. short circuit current (A) total | 48.00 |
| Max. short circuit current per MPPT (A) | 30/18 |
| MPP max. voltage range input (V) | 800.00 |
| Max. efficiency (%) | 98.30 |
| Min. voltage range input (V) | 125 |
| MPP min. voltage range input (V) | 260.00 |
| Min. temperature ambient (°C) | -25 |
| Grid protection | yes |
| Offgrid usable | no |
| Shadow management | yes |
| Rapid shutdown | no |
| Interface 1 | Ethernet |
| Interface 2 | W-Lan |
| Start input voltage (V) | 150 |
| String fuses | not included |
| Topology | transformerless |
| Manufacturer | SMA |
|---|---|
| Manufacturer item name | Sunny Tripower 8.0 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 52.00 |
|---|---|
| Width incl. packaging (cm) | 63.00 |
| Height incl. packaging (cm) | 25.00 |
| Weight incl. packaging (Kg) | 25.000 |
| Amount per Pallet | 14 |
| Pal. weight (kg) | 362.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1900 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 176.00 |
|---|---|
| Width without packaging (mm) | 460.00 |
| Height without packaging (mm) | 497.00 |
| Weight without packaging (kg) | 20.400 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
