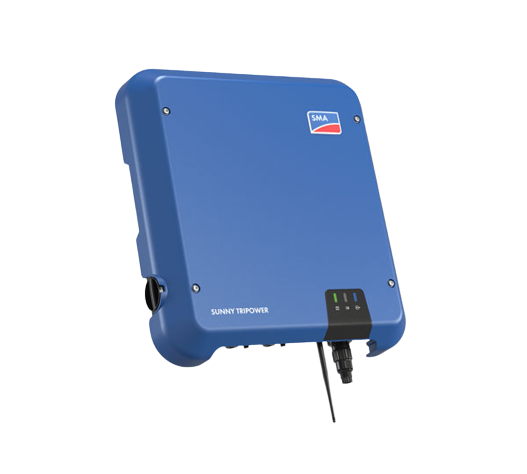

Sunny Tripower 3.0
String Inverter Sunny Tripower 3.0
Art. no.
6641769
Manufacturer No.
STP 3.0-3AV-40
Product details
Product information "Sunny Tripower 3.0"
inverter, 3kW, 2MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50/60Hz, w/out display, w/DC switch, WLAN/Ethernet/RS485
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 6.00 |
| Surge protection DC | no |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Interface 2 | RS485 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 175 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| European efficiency (%) | 96.50 |
| Decibel | 30 |
| Max. input current DC (A) total | 24.00 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Max. short circuit current per MPPT (A) | 18\/18 |
| Contact ripple control receiver | yes with supply |
| Step-Up converter | yes |
| Max. input voltage DC (V) | 850.00 |
| Surge protection AC | no |
| Display | w/o display |
| Degree of protection IP | IP65 |
| Max. short circuit current (A) total | 36.00 |
| Max. efficiency (%) | 98.20 |
| Max. AC power (kVA) | 3.00 |
| AC nominal power (kW) | 3.00 |
| Max. output current (A) | 4.60 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Offgrid usable | no |
| MPP min. voltage range input (V) | 140.00 |
| Max. input current per MPPT (A). | 12\/12 |
| UI curve diagnosis | no |
| Integrated AC switch | no |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| String fuses | not included |
| Min. voltage range input (V) | 125 |
| Intrastat country of origin | Germany |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | SMA |
| Manufacturer item name | Sunny Tripower3.0 |
| Length incl. packaging (cm) | 59.00 |
|---|---|
| Pal. weight (kg) | 306.00 |
| Amount per Pallet | 12 |
| Width incl. packaging (cm) | 49.00 |
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 1200x800x1400 |
| Weight incl. packaging (Kg) | 21.000 |
| Height incl. packaging (cm) | 25.00 |
| Weight without packaging (kg) | 16.000 |
|---|---|
| Height without packaging (mm) | 176.00 |
| Length without packaging (mm) | 435.00 |
| Width without packaging (mm) | 470.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
