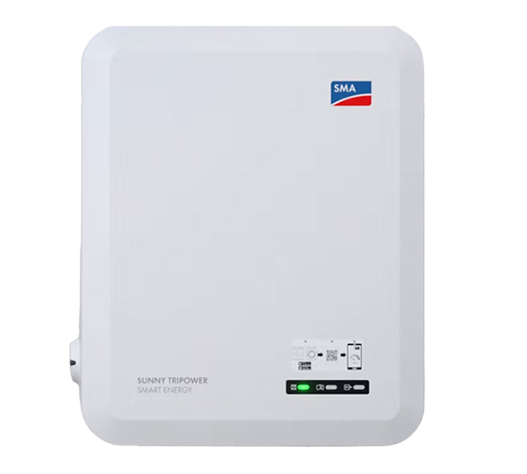

Sunny Tripower 10.0 Smart Energy

Product details

Product information "Sunny Tripower 10.0 Smart Energy"

hybrid inverter, 10kW, 2MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50Hz, w/out display, w/DC switch, DC/AC SPD Type II, Ethernet/WiFi
hybrid inverter, 10kW, 2MPPT, 3ph, 220V/380V, 230V/400V, 240V/415V AC, 50Hz, w/out display, w/DC switch, DC/AC SPD Type II, Ethernet/WiFi

Technical details

Topology transformerless
Min. voltage range input (V) 150
Min. temperature ambient (°C) -25
Protection degree IP65
Max. short circuit current per MPPT (A) 20\/40
Interface 2 RS485
Number of independent MPPT (pcs) 2
AC nominal power (kW) 10.00
Max. output current (A) 15.20
Contact for self-consumption optimization (e.g. for heat pump) 1
MPP min. voltage range input (V) 280.00
Backup system full no
Arc Fault Circuit Interrupter no
Decibel 30
Max. input voltage DC (V) 1000.00
Surge protection AC type 2
Max. AC power (kVA) 10.00
Interface 1 Ethernet
European efficiency (%) 97.50
Battery Connection AC/DC
Step-Up converter yes
Charging current (A) 30.00
Display w/o display
Max. generator power DC (kWp) 15.00
Battery voltage High Voltage
Degree of protection IP IP65
Max. input current per MPPT (A). 12,5\/25
Start input voltage (V) 180
Charging voltage (V) 150-600
Max. efficiency (%) 98.10
Integrated DC switch yes
MPP max. voltage range input (V) 800.00
Total number of string inputs 3
Surge protection DC type 2
Max. input current DC (A) total 37.50
Contact ripple control receiver yes
Backup system light yes
Max. short circuit current (A) total 60.00
Shadow management yes
DC connector type SUNCLIX
Intrastat country of origin China
Manufacturer SMA
Intrastat product number (HS-code) 85044086
Manufacturer item name Sunny Tripower 10.0 Smart Energy
Pal. weight (kg) 310.00
Weight incl. packaging (Kg) 37.000
Length incl. packaging (cm) 59.50
Pack. material cardboard box
Pal. dim. LxBxH (mm) 1200x800x1180
Width incl. packaging (cm) 79.50
Height incl. packaging (cm) 25.00
Amount per Pallet 8
Weight without packaging (kg) 30.000
Height without packaging (mm) 173.00
Width without packaging (mm) 598.00
Length without packaging (mm) 500.00
Warranty provider SMA
Product warranty (yr) 5
