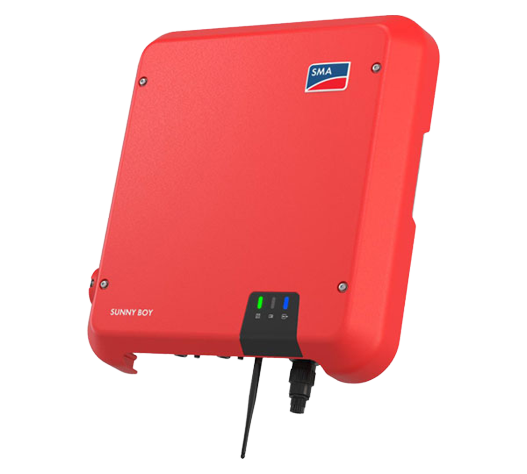

Sunny Boy 6.0
-
Art. no.
6640204
Manufacturer No.
SB6.0-1AV-41
Product details
Product information "Sunny Boy 6.0"
inverter, 6kW, 2MPPT, 1ph, 220V, 230V, 240V AC, 50/60Hz, w/out display, w/DC switch, Ethernet/WiFi/RS485
Technical details
| Topology | transformerless |
|---|---|
| Surge protection DC | no |
| MPP min. voltage range input (V) | 210.00 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 600.00 |
| Number of independent MPPT (pcs) | 2 |
| MPP max. voltage range input (V) | 500.00 |
| Decibel | 25 |
| Max. input current per MPPT (A). | 15\/15 |
| Max. efficiency (%) | 97.00 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 30.00 |
| Max. generator power DC (kWp) | 9.00 |
| Contact ripple control receiver | no |
| Max. AC power (kVA) | 6.00 |
| Total number of string inputs | 4 |
| Rapid shutdown | no |
| Step-Up converter | yes |
| Surge protection AC | no |
| Display | w/o display |
| Min. voltage range input (V) | 100 |
| Max. output current (A) | 26.10 |
| Start input voltage (V) | 125 |
| Interface 1 | RS232 |
| Degree of protection IP | IP65 |
| Integrated DC switch | yes |
| Interface 2 | Ethernet |
| Integrated AC switch | no |
| Shadow management | yes |
| AC nominal power (kW) | 6.00 |
| DC connector type | SUNCLIX |
| Max. short circuit current per MPPT (A) | 22\/22 |
| European efficiency (%) | 96.60 |
| Max. short circuit current (A) total | 44.00 |
| String fuses | not included |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | Sunny Boy 6.0 |
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | SMA |
| Length incl. packaging (cm) | 59.00 |
|---|---|
| Amount per Pallet | 18 |
| Pal. dim. LxBxH (mm) | 1200x800x1670 |
| Weight incl. packaging (Kg) | 20.500 |
| Pal. weight (kg) | 381.00 |
| Width incl. packaging (cm) | 49.00 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 25.00 |
| Weight without packaging (kg) | 16.000 |
|---|---|
| Width without packaging (mm) | 435.00 |
| Length without packaging (mm) | 470.00 |
| Height without packaging (mm) | 176.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
