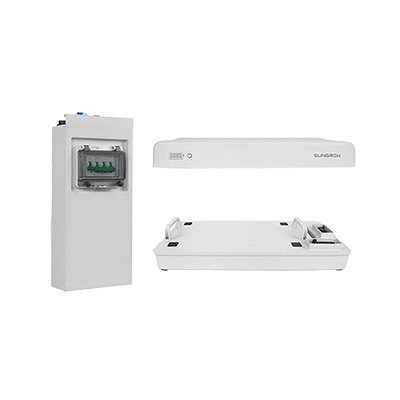

Sungrow SBR256 HV LFP Battery System
25.6kWh, LiFePO4, 8×3.2kWh, switchgear
Art. no.
6662177
Product details
Product information "Sungrow SBR256 HV LFP Battery System"
battery system, 25.6kWh, high voltage, lithium iron phosphate LiFePO4, 8× Sungrow battery 3.2kWh, switchgear, top cover, base
Downloads
-
Sungrow SBR0326660772
-
Sungrow Battery Accessory Kit BATT-KITS6660341
Technical details
| Protection degree | IP55 |
|---|---|
| Capacity extendable later | yes without restriction |
| Max. output current discharging (A) | 30.00 |
| Max. output current charging (A) | 30.00 |
| Nominal voltage DC (V) | 512.00 |
| Usable capacity (kWh) | 25.60 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 264.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Sungrow |
| Manufacturer item name | SBR256 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 279.000 |
|---|
| Length without packaging (mm) | 330.00 |
|---|---|
| Width without packaging (mm) | 625.00 |
| Height without packaging (mm) | 1195.00 |
| Weight without packaging (kg) | 279.000 |
