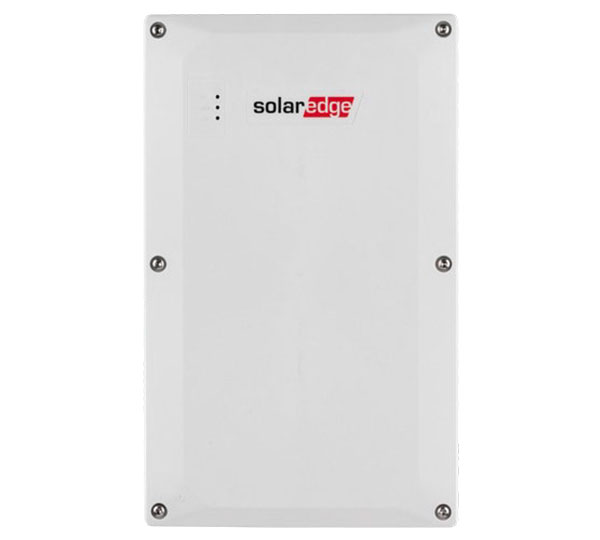

SolarEdge Home Battery backup Interface
3P switching device for RWB inverter
Art. no.
6651153
Manufacturer No.
BI-NEUNU-3P-01
Product details
Product information "SolarEdge Home Battery backup Interface"
This switching device can only be used for the 3-phase RWB Home Hub inverter under the conditions specified by SolarEdge.
In combination with a SolarEdge RWB Home Hub Inverter, the appropriate backup interface can perform the switching necessary for backup power operation. With a short switching time, selected loads or even the entire house connection are supplied by the system again. SolarEdge's inline meter is already integrated into the Backup Interface, reducing installation effort.
Product benefits:
- Direct connection to SolarEdge storage systems with RWB inverters.
- Automatic switching
- Selected loads or even the whole house connection possible
- Integrated inline meter
Product features:
- AC connection: 3-phase, 230 / 400 V
- AC rated current: 3 x 63 A
- Communication: RS485
- Protection class: IP65
- Dimensions: 390 x 238 x 147 mm (H x W x D)
- Weight: 5.0 kg
Technical details
| Feed-in phases | 3 |
|---|
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolarEdge |
| Manufacturer item name | BI-EU3P |
| Intrastat product number (HS-code) | 85371098 |
| Pack. material | cardboard box |
|---|---|
| Width incl. packaging (cm) | 30.00 |
| Amount per Pallet | 48 |
| Pal. dim. LxBxH (mm) | 1200x800x2100 |
| Length incl. packaging (cm) | 50.00 |
| Height incl. packaging (cm) | 24.00 |
| Weight incl. packaging (Kg) | 7.000 |
| Width without packaging (mm) | 238.00 |
|---|---|
| Height without packaging (mm) | 147.00 |
| Weight without packaging (kg) | 5.000 |
| Length without packaging (mm) | 390.00 |
| Product warranty (yr) | 12 |
|---|---|
| Warranty provider | SolarEdge |
