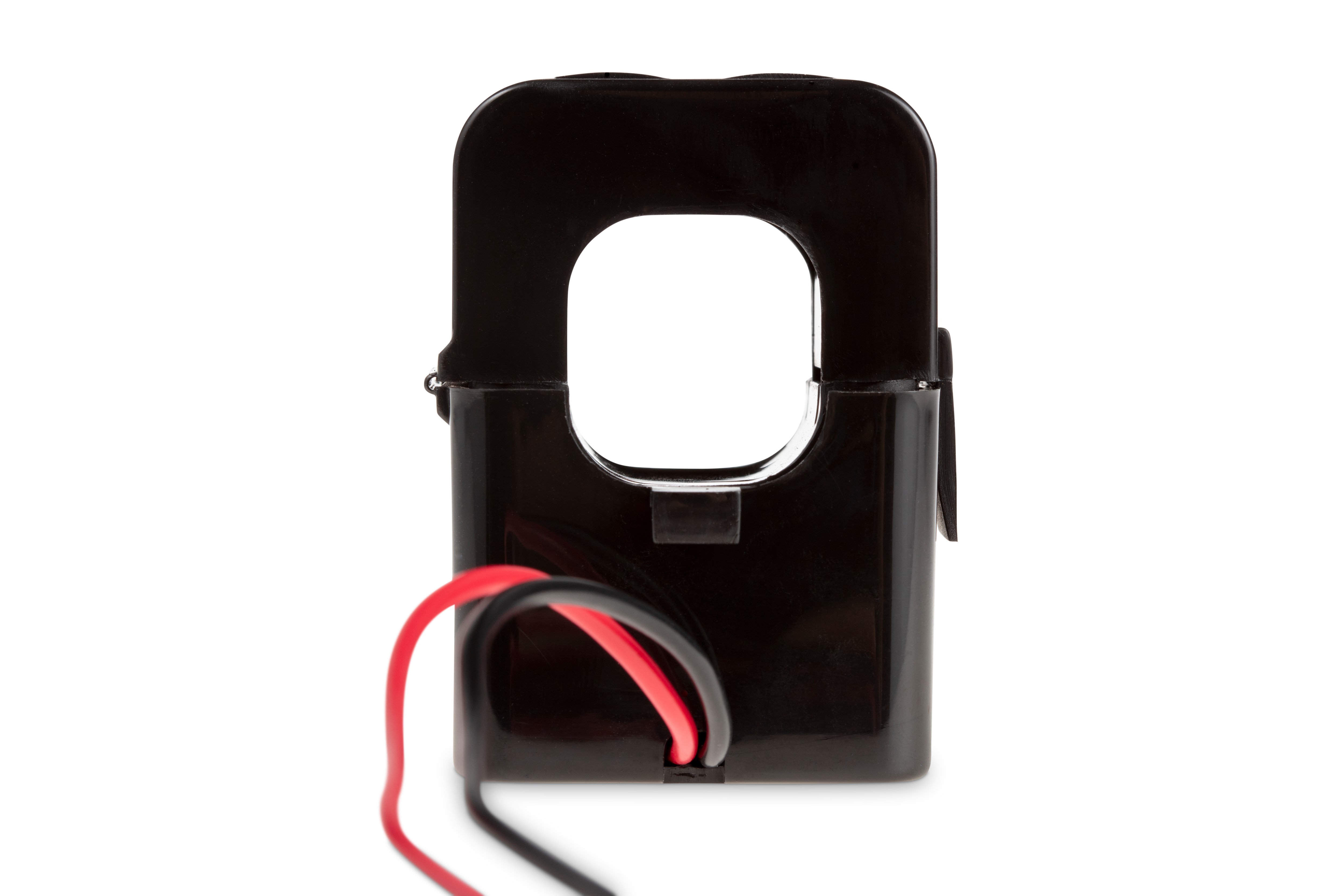

Smart Meter CT A 150A/5A
Hinged measuring transformer for Smart Meter CT A
Art. no.
6651143
Manufacturer No.
41,0010,0096
Product details
Product information "Smart Meter CT A 150A/5A"
Can only be used with the Fronius Smart Meter TS 5kA-3 and 50kA-3.
This article only includes a single measuring transformer. For 3-phase measurement, please adjust the quantity ordered.
If the grid connection exceeds the maximum value of 63 amps for direct measurement, special smart meters with measuring transformers are used. These are selected to match the grid connection and enable the usual accurate power recording. The hinged design with split-core enables quick and uncomplicated installation.
Product features Measuring transformer:
- Compatible with: Fronius Smart Meter TS 5kA-3 + 50kA-3
- Primary current: 150 A
- Secondary current: 5 A
- Accuracy: Class 1
- Cable length: 1.0 m
- Inner diameter: 24 mm
- Dimensions: 66.5 x 45 x 34.4 mm
Technical details
| Secondary current (A) | 5.00 |
|---|---|
| Accuracy class | 1 |
| Type of construction | split core |
| Diameter (mm) | 24.00 |
| Primary current (A) | 150.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | CT A 150A\/5A |
| Intrastat product number (HS-code) | 85043200 |
| Manufacturer | Fronius |
| Pal. dim. LxBxH (mm) | 1200x800x1800 |
|---|---|
| Weight incl. packaging (Kg) | 0.230 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 6.50 |
| Width incl. packaging (cm) | 7.80 |
| Length incl. packaging (cm) | 8.80 |
| Amount per Pallet | 1920 |
| Height without packaging (mm) | 34.00 |
|---|---|
| Width without packaging (mm) | 45.00 |
| Weight without packaging (kg) | 0.180 |
| Length without packaging (mm) | 67.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
