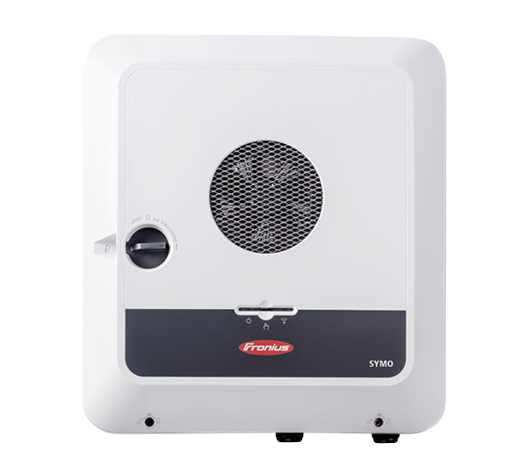

SYMO GEN24 8.0 Plus
Hybrid inverter, 2 MPPT, 3-phase
Art. no.
6642443
Manufacturer No.
4,210,155,002
Product details
Product information "SYMO GEN24 8.0 Plus"
This product requires an internet connection.
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.
Product advantages:
• Storage connection already activated
• Emergency power via Fronius PV-Point
• Backup power possible with Enwitec switchover device
Product features:
• AC power: 8.0 kW
• Number of MPPT: 2
• DC input current: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A
• Battery connection: active
• AC connection: 3-phase
• Communication: WLAN, 2 x Ethernet, 2 x RS485
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 595 x 529 x 180 mm (H x W x D)
• Weight: 23.4 kg
Technical details
| AC nominal power (kW) | 8.00 |
|---|---|
| Surge protection AC | type 3 |
| Contact ripple control receiver | yes |
| Control main relay external grid guard | yes |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Battery Connection | AC/DC |
| DC connection | spring-type terminal |
| Surge protection DC | type 2 |
| Decibel | 47 |
| Display | w/o display |
| Feed-in phases | 3 |
| Backup system light | no |
| Backup system full | yes with supply |
| European efficiency (%) | 97.80 |
| Protection degree | IP66 |
| Total number of string inputs | 3 |
| Integrated DC switch | yes |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Charging voltage (V) | 160-500 |
| Charging current (A) | 22.00 |
| Max. AC power (kVA) | 8.00 |
| Max. output current (A) | 11.60 |
| Max. generator power DC (kWp) | 12.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 37.50 |
| Max. input current per MPPT (A). | 25/12,5 |
| Max. short circuit current (A) total | 60.00 |
| Max. short circuit current per MPPT (A) | 40/20 |
| MPP max. voltage range input (V) | 800.00 |
| Max. efficiency (%) | 98.20 |
| Min. voltage range input (V) | 80 |
| MPP min. voltage range input (V) | 80.00 |
| Min. temperature ambient (°C) | -25 |
| Interface 1 | RS485 |
| Interface 2 | Ethernet |
| Start input voltage (V) | 80 |
| Topology | transformerless |
| Manufacturer | Fronius |
|---|---|
| Manufacturer item name | Symo GEN24 Plus 8.0 |
| Intrastat country of origin | Austria |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 60.00 |
|---|---|
| Width incl. packaging (cm) | 53.00 |
| Height incl. packaging (cm) | 18.00 |
| Weight incl. packaging (Kg) | 28.500 |
| Amount per Pallet | 14 |
| Pal. weight (kg) | 410.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 595.00 |
|---|---|
| Width without packaging (mm) | 529.00 |
| Height without packaging (mm) | 180.00 |
| Weight without packaging (kg) | 23.400 |
| Warranty provider | Fronius |
|---|---|
| Product warranty (yr) | 2 |
| Standard product warranty (yr) | 5 + 5 Years Fronius Warranty Plus (After Free Registration) |
