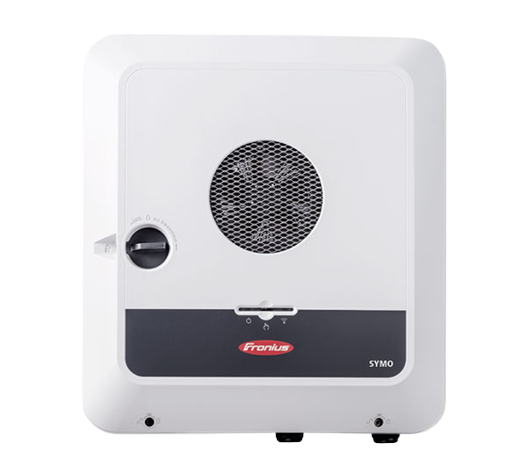

SYMO GEN24 10.0 Plus
-
Art. no.
6642444
Manufacturer No.
4,210,157,002
Product details
Product information "SYMO GEN24 10.0 Plus"
hybrid inverter, 10kW, 2MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/out display, w/DC switch, WLAN/LAN/Webserver
Technical details
| Max. output current (A) | 14.50 |
|---|---|
| Topology | transformerless |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 3 |
| Max. input voltage DC (V) | 1000.00 |
| Max. AC power (kVA) | 10.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Battery Connection | AC/DC |
| European efficiency (%) | 97.90 |
| Step-Up converter | yes |
| Display | w/o display |
| Max. generator power DC (kWp) | 15.00 |
| Decibel | 47 |
| MPP min. voltage range input (V) | 80.00 |
| Max. efficiency (%) | 98.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 40\/20 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| Max. input current DC (A) total | 37.50 |
| Interface 2 | Ethernet |
| Max. input current per MPPT (A). | 25\/12,5 |
| Max. short circuit current (A) total | 60.00 |
| Manufacturer item name | Symo GEN24 Plus 10.0 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Weight incl. packaging (Kg) | 28.500 |
|---|---|
| Pal. weight (kg) | 410.00 |
| Length incl. packaging (cm) | 60.00 |
| Width incl. packaging (cm) | 53.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 14 |
| Height incl. packaging (cm) | 18.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Width without packaging (mm) | 529.00 |
|---|---|
| Weight without packaging (kg) | 23.400 |
| Height without packaging (mm) | 180.00 |
| Length without packaging (mm) | 595.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
