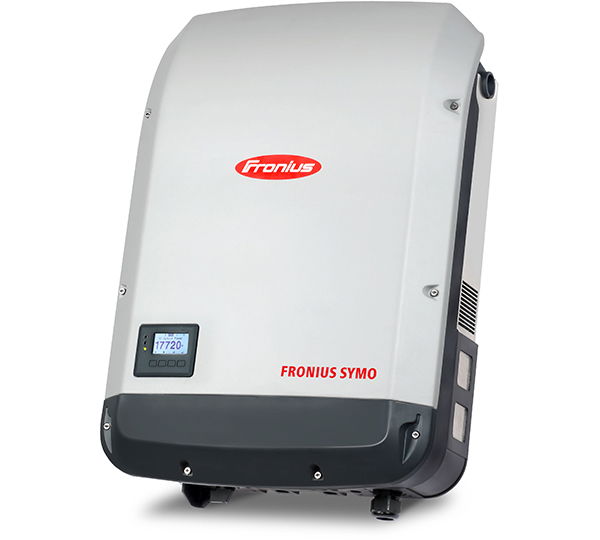

SYMO Advanced 15.0-3-M
PV-WR, 3-phase, 2 MPPT, AFCI, with display
Art. no.
6652865
Manufacturer No.
4,210,161
Product details
Product information "SYMO Advanced 15.0-3-M"
inverter, 15kW, 2MPPT, 3ph, 220V/380V, 230V/400V AC, 50/60Hz, w/display, w/DC switch, w/AFCI, WLAN/LAN/Webserver
The Symo Advanced series from Fronius is the stable basis for systems from 10 kW upwards. Easy and efficient to combine – even with the GEN24 storage concept. A wide voltage range and high input currents provide the necessary flexibility. Also available in a light version for price-sensitive system configurations.
Product advantages:
• Integrated arc detection
• Extend the warranty to 5 years via online registration
• Cost-effective Com connection in larger systems
Product features:
• AC power: 15.0 kW
• AC connection: 400 V, 3-phase
• Number of MPPT: 2
• DC input current: MPPT 1 - 33.0 A, MPPT 2 – 27.0 A (15 - 20)
• Communication: 2 x RS485 (Fronius Solar Net), WLAN, 2 x Ethernet, 2 x RS485
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 725 x 510 x 225 mm (H x W x D)
• Weight: 35.4 kg
• Warranty: 2 years
Fronius inverters come with a standard warranty of 2 years.
The warranty period can be extended to up to 10 years free of charge by registering at www.solarweb.com!
Technical details
| Topology | transformerless |
|---|---|
| Total number of string inputs | 6 |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Max. short circuit current per MPPT (A) | 68,0\/55,7 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. input voltage DC (V) | 1000.00 |
| Degree of protection IP | IP66 |
| Interface 1 | Ethernet |
| Max. AC power (kVA) | 15.00 |
| Step-Up converter | yes |
| DC connector type | screw-type terminal |
| MPP min. voltage range input (V) | 200.00 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Max. generator power DC (kWp) | 22.50 |
| MPP max. voltage range input (V) | 800.00 |
| Max. input current DC (A) total | 51.00 |
| Max. input current per MPPT (A). | 33,0\/27,0 |
| AC nominal power (kW) | 15.00 |
| Arc Fault Circuit Interrupter | yes |
| European efficiency (%) | 97.80 |
| Manufacturer item name | Symo Advanced 15.0-3-M |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. dim. LxBxH (mm) | 1200x800x1520 |
|---|---|
| Width incl. packaging (cm) | 59.00 |
| Pal. weight (kg) | 390.00 |
| Height incl. packaging (cm) | 34.00 |
| Weight incl. packaging (Kg) | 46.500 |
| Pack. material | cardboard box |
| Amount per Pallet | 8 |
| Length incl. packaging (cm) | 79.00 |
| Length without packaging (mm) | 725.00 |
|---|---|
| Width without packaging (mm) | 510.00 |
| Weight without packaging (kg) | 43.400 |
| Height without packaging (mm) | 225.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 |
