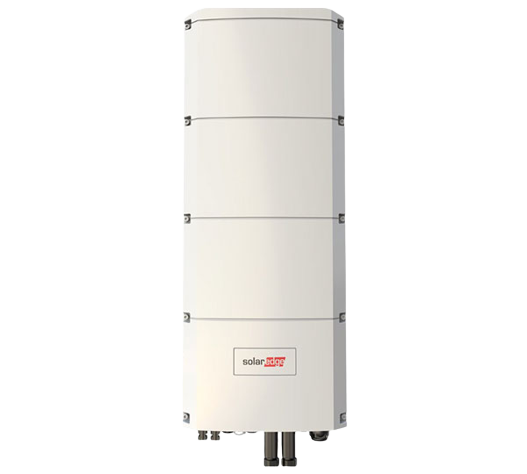

SE10K-RWB48BFN4 HOME HUB
Hybrid inverter, with backup function, 3-phase
Art. no.
6651151
Manufacturer No.
SE10K-RWB48BFN4
Product details
Product information "SE10K-RWB48BFN4 HOME HUB"
The SolarEdge Home Backup Interface is also required for backup operation.
Not compatible with BYD LVS and LG Resu / LG enblock storage systems
The hybrid inverters of the RWB series from SolarEdge are the energy control center for home applications. DC-coupled storage, the unique optimizer concept and the extensive range of accessories in the SolarEdge Smart Home Line ensure the best possible use of your valuable PV energy. In combination with the SolarEdge Backup Interface, backup power is also possible.
Product advantages:
• Unique optimizer concept
• Backup function (with Backup Interface)
• Simple installation via SetApp
Product features:
• AC rated power: 10.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Max. input voltage: 900 V DC
• Storage type: Low voltage
• Backup power capability: Yes, with backup interface
• Communication: WLAN (antenna required), LAN, 2 x RS485
• Protection class: IP65
• Cooling: passive
• Dimensions: 907 x 316 x 192 mm (H x W x D)
• Weight: 37.0 kg
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Charging current (A) | 125.00 |
| Surge protection DC | no |
| Charging voltage (V) | 40-62 |
| Decibel | 50 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Backup system full | yes with supply |
| Backup system light | no |
| Protection degree | IP65 |
| AC nominal power (kW) | 10.00 |
| Total number of string inputs | 2 |
| Max. input voltage DC (V) | 900.00 |
| Max. AC power (kVA) | 10.00 |
| Interface 1 | RS485 |
| Battery Connection | AC/DC |
| Surge protection AC | no |
| Display | w/o display |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| Max. generator power DC (kWp) | 20.00 |
| Max. input current DC (A) total | 20.00 |
| Max. output current (A) | 16.00 |
| Interface 2 | Ethernet |
| Min. voltage range input (V) | 750 |
| Battery voltage | Low Voltage |
| European efficiency (%) | 97.60 |
| Manufacturer item name | SE10K-RWB48 |
|---|---|
| Intrastat country of origin | Israel |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Pal. dim. LxBxH (mm) | 1200x800x2060 |
|---|---|
| Amount per Pallet | 16 |
| Height incl. packaging (cm) | 96.00 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 45.000 |
| Width incl. packaging (cm) | 30.00 |
| Length incl. packaging (cm) | 40.00 |
| Length without packaging (mm) | 907.00 |
|---|---|
| Height without packaging (mm) | 192.00 |
| Width without packaging (mm) | 317.00 |
| Weight without packaging (kg) | 37.000 |
| Product warranty (yr) | 12 |
|---|---|
| Warranty provider | SolarEdge |
