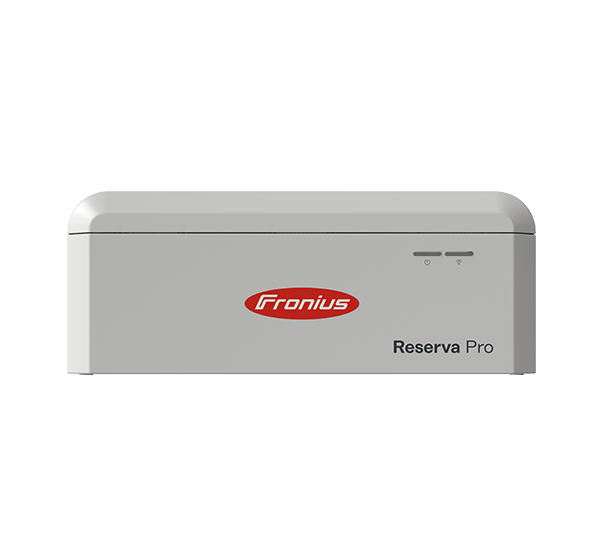

Reserva Pro Module
Product information "Reserva Pro Module"
The Fronius Reserva Pro is the heart of a future-proof energy system for anyone who wants high self-consumption
and maximum independence. It impresses with outstanding durability, tested safety, and reliable performance. The
DC-coupled high-voltage battery with durable and safe LFP cells offers high charging/discharging performance,
maximum efficiency, and a 10-year warranty. Protection against overcharging and deep discharge, as well as
rigorous safety tests, ensure maximum operational reliability. With 12 to 32 kWh per tower and up to 128 kWh
through parallel connection, it is flexibly scalable. Tool-free plug-in assembly makes installation easy. Optimally
matched to the Fronius ecosystem and the Fronius Verto Plus and GEN24 Plus, the Fronius Reserva Pro is the
ideal choice for small and medium-sized businesses, agricultural operations, and larger single-family and multifamily
homes.
Technical details
| Nominal Capacity (Ah) | 56.00 |
|---|---|
| Protection degree | IP65 |
| Max. output current discharging (A) | 50.00 |
| Capacity extendable later | yes with time restriction |
| Min. temperature ambient (°C) | -20 |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 3.98 |
| Max. output current charging (A) | 50.00 |
| Nominal voltage DC (V) | 70.84 |
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 36.000 |
| Intrastat country of origin | Poland |
| Manufacturer item name | Reserva Pro Module |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Fronius |
| UN No. | 3480 |
| Intrastat product number (HS-code) | 85371091 |
| Height incl. packaging (cm) | 265.00 |
|---|---|
| Weight incl. packaging (Kg) | 43.000 |
| Amount per Pallet | 6 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 590.00 |
| Pal. dim. LxBxH (mm) | 1200x800x931 |
| Length incl. packaging (cm) | 765.00 |
| Height without packaging (mm) | 160.00 |
|---|---|
| Width without packaging (mm) | 570.00 |
| Length without packaging (mm) | 440.00 |
| Weight without packaging (kg) | 36.000 |
| Warranty provider | Fronius |
|---|---|
| Product warranty (yr) | 10 |
