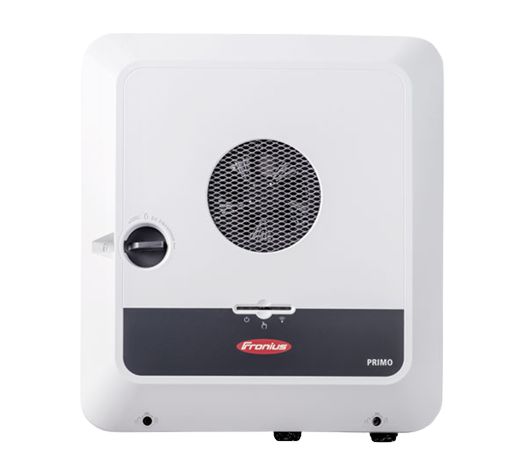

PRIMO GEN24 4.0 Plus
-
Art. no.
6642447
Manufacturer No.
4,210,142,002
Product details
Product information "PRIMO GEN24 4.0 Plus"
hybrid inverter, 4kW, 2MPPT, 1ph, 220V, 230V AC, 50/60Hz, w/out display, w/DC switch, WLAN/LAN/Webserver
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 6.00 |
| Start input voltage (V) | 80 |
| Max. input current per MPPT (A). | 22\/12 |
| Min. temperature ambient (°C) | -40 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 4.00 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Surge protection AC | type 3 |
| Max. AC power (kVA) | 4.00 |
| Decibel | 42 |
| European efficiency (%) | 97.10 |
| MPP max. voltage range input (V) | 600.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Max. short circuit current per MPPT (A) | 36\/19 |
| Max. short circuit current (A) total | 55.00 |
| Max. efficiency (%) | 97.60 |
| Max. output current (A) | 18.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Charging voltage (V) | 150-455 |
| Emergency power (separate port) | true |
| MPP min. voltage range input (V) | 65.00 |
| Min. voltage range input (V) | 65 |
| Charging current (A) | 22.00 |
| Manufacturer item name | Primo GEN24 Plus 4.0 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. weight (kg) | 410.00 |
|---|---|
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 53.00 |
| Width incl. packaging (cm) | 48.00 |
| Weight incl. packaging (Kg) | 19.000 |
| Height incl. packaging (cm) | 17.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Height without packaging (mm) | 163.00 |
|---|---|
| Length without packaging (mm) | 528.00 |
| Weight without packaging (kg) | 16.600 |
| Width without packaging (mm) | 474.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
