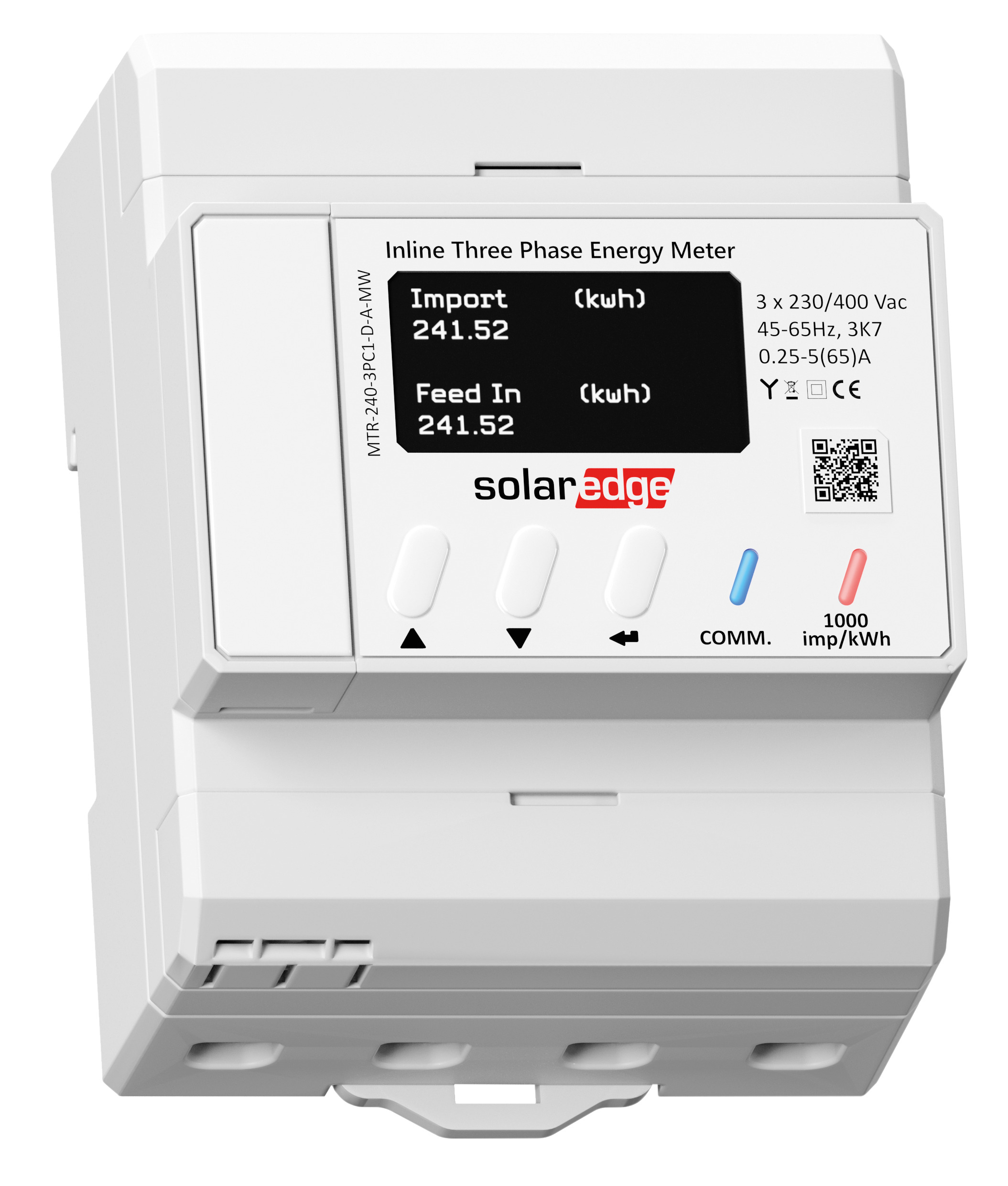

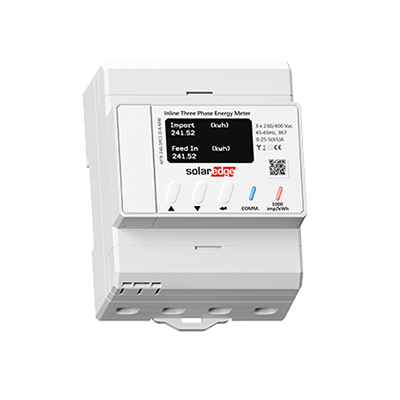

Inline Energy Meter MTR EU3
Inline Energy Meter 3-phase
Art. no.
6648127
Manufacturer No.
MTR-240-3PC1-D-A-MW
Product details
Product information "Inline Energy Meter MTR EU3"
energy meter, performs export/import, production and consumption energy readings with 1% accuracy, enables direct connection of up to 65A per phase for 3ph grid connections
Grow your revenues with an easily installed metering solution that fits comfortably into standard electrical DIN-rail cabinets.
• Performs export/import, production and consumption energy readings with 1% accuracy
• Includes integrated current transformers for faster installations, reduced labor costs and simplified logistics
• Easier installations using SolarEdge Energy Net to communicate wirelessly with the inverter (RS485 connectivity is optional)
• Supports export/import limitation and SolarEdge Smart Energy applications
• Integrates smoothly and easily with SolarEdge Smart Energy solutions
• Enables direct connection of up to 65A per phase
• Quick setup with automatic meter detection by the SolarEdge inverter
• Intuitive meter configuration and visibility to meter status using the SetApp mobile app
Technical details
| Type of AC measurement | direct |
|---|---|
| Max. input current (A) total | 65.00 |
| Mounting type | DIN rail |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 90283090 |
| Manufacturer | SolarEdge |
| Manufacturer item name | MTR EU3 |
| Pal. dim. LxBxH (mm) | 120x80x145 |
|---|---|
| Weight incl. packaging (Kg) | 0.500 |
| Height incl. packaging (cm) | 33.00 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 40.00 |
| Width incl. packaging (cm) | 38.00 |
| Length without packaging (mm) | 90.00 |
|---|---|
| Height without packaging (mm) | 58.00 |
| Width without packaging (mm) | 72.00 |
| Weight without packaging (kg) | 0.320 |
| Warranty provider | SolarEdge |
|---|
