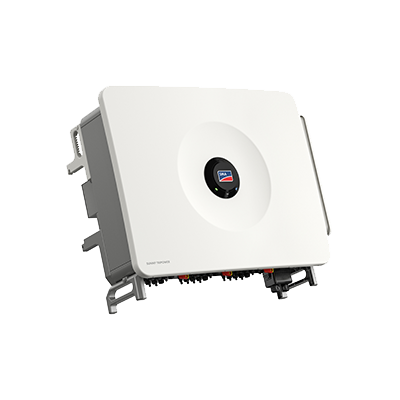

IV SMA STP 125-70
PV-Wechselrichter, 12 MPPT, 3-phasig
Art. no.
6658508
Manufacturer No.
3-125-1100-1-70
Product details
Product information "IV SMA STP 125-70"
PV inverter for grid feed-inPac,r/Sac,max 125000 W/125000 VA, three-phase feed-in, with reactive power feed-in, transformerless, Ethernet and Wi-Fi communication interface, browser-based configuration of country settings, 12 independent MPP trackers, 24 DC inputs, fuseless DC design, Sunclix terminal, integrated DC load-break switches, AC terminal for copper or aluminum conductors, integrated DC surge protection type I/II, with integrated arc fault detection AFCI. Direct connection to Sunny Portal powered by ennexOS. Easy commissioning and parameterization via integrated webserver or SMA 360° app.
Technical details
| Topology | transformerless |
|---|---|
| Max. input current DC (A) total | 360.00 |
| Interface 2 | W-Lan |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Min. voltage range input (V) | 180 |
| Start input voltage (V) | 200 |
| European efficiency (%) | 98.10 |
| Total number of string inputs | 24 |
| Max. generator power DC (kWp) | 187.50 |
| Surge protection AC | type 2 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Number of independent MPPT (pcs) | 12 |
| Max. short circuit current per MPPT (A) | 40 |
| Max. AC power (kVA) | 125.00 |
| Step-Up converter | yes |
| Display | w/o display |
| Degree of protection IP | IP65 |
| MPP min. voltage range input (V) | 180.00 |
| Max. efficiency (%) | 98.40 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 30 |
| Offgrid usable | no |
| AC nominal power (kW) | 125.00 |
| Max. input voltage DC (V) | 1100.00 |
| Decibel | 71 |
| Contact ripple control receiver | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. short circuit current (A) total | 480.00 |
| Shadow management | yes |
| MPP max. voltage range input (V) | 1000.00 |
| DC connector type | SUNCLIX |
| Max. output current (A) | 181.10 |
| Surge protection DC | type 1 and type 2 |
| String fuses | not included |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | Sunny Tripower 125 |
| Pal. dim. LxBxH (mm) | 1120x905x627 |
|---|---|
| Height incl. packaging (cm) | 62.70 |
| Width incl. packaging (cm) | 90.50 |
| Amount p. Cont. | 104 |
| Amount per Pallet | 1 |
| Length incl. packaging (cm) | 112.00 |
| Weight incl. packaging (Kg) | 130.000 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 130.00 |
| Width without packaging (mm) | 1020.00 |
|---|---|
| Height without packaging (mm) | 360.00 |
| Length without packaging (mm) | 795.00 |
| Weight without packaging (kg) | 96.000 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
