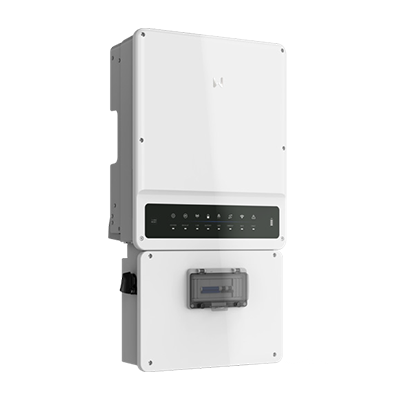

GW9.99K-EHB-AU-G11
-
Art. no.
6660654
Manufacturer No.
EHB5000-02-00P
Product details
Product information "GW9.99K-EHB-AU-G11"
hybrid inverter, 9.99kW, 4MPPT, 1ph, 230V AC, 50Hz, EHB Series, w/DC switch, RS485, WiFi, DC/AC SPD Type II
Technical details
| Topology | transformerless |
|---|---|
| MPP max. voltage range input (V) | 550.00 |
| Charging voltage (V) | 80V-495 V |
| Interface 2 | W-Lan |
| Protection degree | IP65 |
| AC nominal power (kW) | 9.99 |
| Max. input voltage DC (V) | 600.00 |
| Number of independent MPPT (pcs) | 4 |
| Max. input current DC (A) total | 64.00 |
| Charging current (A) | 50.00 |
| Min. temperature ambient (°C) | -35 |
| Max. output current (A) | 43.40 |
| Start input voltage (V) | 95 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery Connection | DC |
| Max. input current per MPPT (A). | 16.0\/16.0\/16.0\/16.0 |
| Max. AC power (kVA) | 9.99 |
| Display | w/o display |
| MPP min. voltage range input (V) | 80.00 |
| Max. generator power DC (kWp) | 20.00 |
| Max. short circuit current (A) total | 96.00 |
| Max. efficiency (%) | 97.60 |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Backup system light | yes |
| Integrated AC switch | yes |
| European efficiency (%) | 97.00 |
| Max. short circuit current per MPPT (A) | 24.0\/24.0\/24.0\/24.0 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | GoodWe |
| Manufacturer item name | GW9.99K-EHB-AU-G11 |
| Weight incl. packaging (Kg) | 33.000 |
|---|
| Weight without packaging (kg) | 33.000 |
|---|---|
| Height without packaging (mm) | 791.00 |
| Length without packaging (mm) | 180.00 |
| Width without packaging (mm) | 415.00 |
| Warranty provider | GoodWe |
|---|
