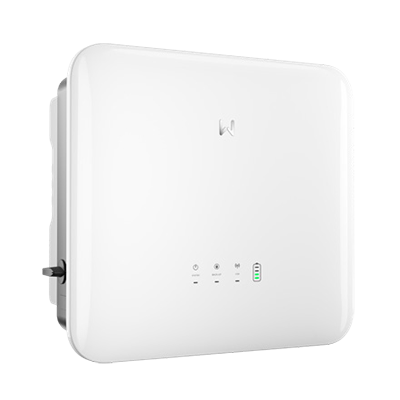

GW8000-ET-20
Product information "GW8000-ET-20"
The 2nd generation of the Goodwe ET-20 hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET+ series has been enhanced and improved in many areas. With the familiar 16 amp input current per MPP tracker, all current module series can be connected. With an integrated smart meter including 3 CTS and a communication dongle, as well as AC+DC surge protection and AFCI arc detection, the system is complete. The proven backup connection provides uninterrupted power to selected circuits.
Product advantages:
• Emergency power with UPS function
• 16 A input current per MPPT
• 3 x CTs + Wi-Fi-LAN dongle with cyber security included
• Alternatively, also with an additional external smart meter
• Up to 4 inverters can be connected in parallel
Product features:
• AC nominal power: 8.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Number of MPP trackers: 2
• Max. DC input voltage: 1000 V
• AFCI arc detection: yes – version 3.0
• DC surge protection: Type 2
• AC surge protection: Type 2
• Storage type: high voltage
• Backup power capability: yes, via EPS connection
• Interfaces: RS485, CAN, Wi-Fi, LAN
• Protection class: IP66
• Cooling: passive
• Dimensions: 460 x 496 x 221 mm (HxWxD)
• Weight: 23.0 kg
Technical details
| AC nominal power (kW) | 8.00 |
|---|---|
| Surge protection AC | type 2 |
| Contact ripple control receiver | yes |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | yes |
| Battery Connection | DC |
| Surge protection DC | type 2 |
| Decibel | 30 |
| Display | w/o display |
| Feed-in phases | 3 |
| Backup system light | yes |
| Backup system full | no |
| European efficiency (%) | 97.20 |
| Protection degree | IP66 |
| Total number of string inputs | 2 |
| Integrated AC switch | no |
| Integrated DC switch | yes |
| Contact for self-consumption optimization (e.g. for heat pump) | 1 |
| Charging voltage (V) | 150V-720 V |
| Charging current (A) | 30.00 |
| Peak shaving | yes |
| Max. AC power (kVA) | 8.00 |
| Max. output current (A) | 11.60 |
| Max. generator power DC (kWp) | 12.80 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Max. input current per MPPT (A). | 16.0/16.0 |
| Max. short circuit current (A) total | 48.00 |
| Max. short circuit current per MPPT (A) | 24.0/24.0 |
| MPP max. voltage range input (V) | 850.00 |
| Max. efficiency (%) | 98.00 |
| Min. voltage range input (V) | 120 |
| MPP min. voltage range input (V) | 120.00 |
| Min. temperature ambient (°C) | -35 |
| Interface 1 | RS485 |
| Interface 2 | W-Lan |
| Start input voltage (V) | 150 |
| Topology | transformerless |
| Manufacturer | GoodWe |
|---|---|
| Manufacturer item name | GW8000-ET-20 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 32.70 |
|---|---|
| Width incl. packaging (cm) | 68.10 |
| Height incl. packaging (cm) | 58.60 |
| Weight incl. packaging (Kg) | 28.000 |
| Amount per Pallet | 6 |
| Amount Pal. p. Cont. | 26 |
| Amount p. Cont. | 156 |
| Pal. weight (kg) | 187.00 |
| Pal. dim. LxBxH (mm) | 1200x750x116 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 221.00 |
|---|---|
| Width without packaging (mm) | 496.00 |
| Height without packaging (mm) | 460.00 |
| Weight without packaging (kg) | 23.000 |
| Warranty provider | GoodWe |
|---|
