GW5000N-EH Plus On-grid + Activation Code + GM1000
Product details
Product information "GW5000N-EH Plus On-grid + Activation Code + GM1000"

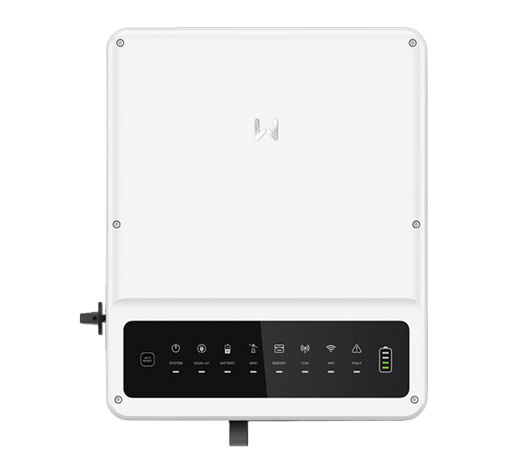

hybrid inverter with battery function, 5kW, 2MPPT, 1ph, 230V AC, 50/60Hz, EH Series, WiFi, DC SPD Type II, smart meter GM1000 included
Downloads
-
Battery Function Activation Code f GW5000N-EH Plus6660368
-
GW5000N-EH Plus On-grid6660584
-

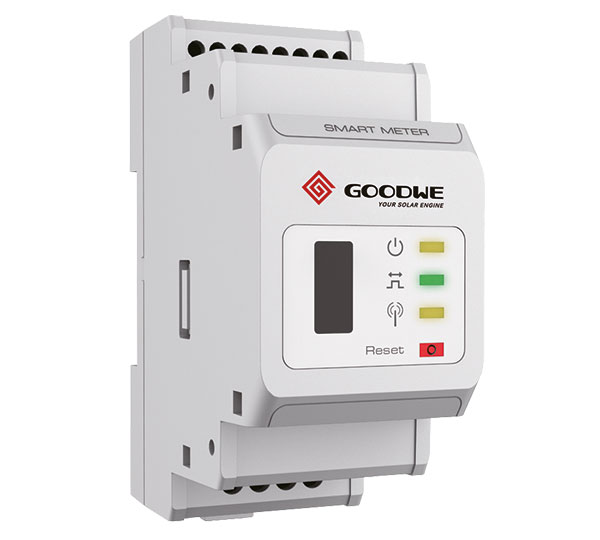

GM10006642055
-
GM10006642055
Technical details
| Topology | transformerless |
|---|---|
| Charging current (A) | 25.00 |
| Max. short circuit current (A) total | 42.40 |
| Start input voltage (V) | 90 |
| Max. input current per MPPT (A). | 16 |
| MPP max. voltage range input (V) | 550.00 |
| Interface 2 | W-Lan |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Total number of string inputs | 2 |
| Max. input current DC (A) total | 32.00 |
| Interface 1 | RS485 |
| Battery Connection | DC |
| AC nominal power (kW) | 5.00 |
| Max. short circuit current per MPPT (A) | 21,2 |
| Display | w/o display |
| Max. input voltage DC (V) | 580.00 |
| Max. efficiency (%) | 97.60 |
| Backup system light | yes with supply |
| Max. output current (A) | 21.70 |
| Surge protection DC | type 2 |
| Max. AC power (kVA) | 5.00 |
| Min. voltage range input (V) | 90 |
| European efficiency (%) | 97.00 |
| Max. generator power DC (kWp) | 7.50 |
| Charging voltage (V) | 85-460 |
| MPP min. voltage range input (V) | 100.00 |
| Manufacturer | GoodWe |
|---|---|
| Manufacturer item name | GW5000N-EH*Activation Code*GM1000 |
| Weight incl. packaging (Kg) | 17.220 |
|---|
| Weight without packaging (kg) | 17.220 |
|---|
| Warranty provider | GoodWe |
|---|
