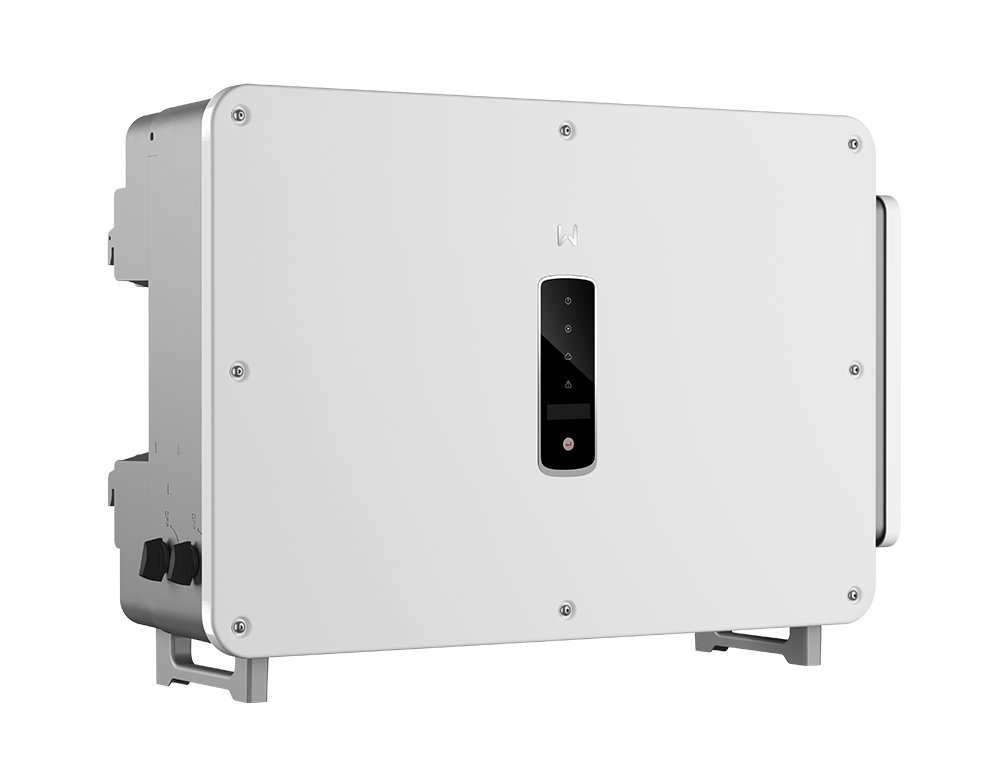

GW110K-GT (110kW - 10MPPT)
GT Series
Art. no.
6663246
Manufacturer No.
GTU110K-12-01P
Product details
Product information "GW110K-GT (110kW - 10MPPT)"
The GT Series string inverter is an ideal choice for commercial and industrial (C&I) applications to enhance productivity and realize high power density. Multiple MPPTs and high input current of 21A per DC string increase the overall yield with high-power PV modules. The optional PID (Potential Induced Degradation) recovery function is also supported for better module performance. Safety is always the first priority. Both the DC and AC sides are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an unrivaled set of features, GT Series inverters were conceived to deliver increased return on investment (ROI) for C&I PV projects.
Technical details
| Topology | transformerless |
|---|---|
| Number of independent MPPT (pcs) | 10 |
| DC connector type | MC4 |
| Max. AC power (kVA) | 110.00 |
| Interface 2 | W-Lan |
| Protection degree | IP66 |
| Min. voltage range input (V) | 180 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. short circuit current per MPPT (A) | 52,5 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Max. input current DC (A) total | 420.00 |
| Step-Up converter | yes |
| AC nominal power (kW) | 110.00 |
| Max. generator power DC (kWp) | 121.00 |
| MPP min. voltage range input (V) | 180.00 |
| Max. output current (A) | 183.40 |
| Integrated DC switch | yes |
| Max. efficiency (%) | 98.80 |
| Min. temperature ambient (°C) | -30 |
| European efficiency (%) | 98.40 |
| Max. short circuit current (A) total | 525.00 |
| Total number of string inputs | 20 |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 42 |
| MPP max. voltage range input (V) | 1000.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | GW110K-GT |
| Width incl. packaging (cm) | 104.00 |
|---|---|
| Weight incl. packaging (Kg) | 101.500 |
| Amount per Pallet | 1 |
| Pal. dim. LxBxH (mm) | 462x1072x879 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 43.50 |
| Height incl. packaging (cm) | 74.20 |
| Pal. weight (kg) | 106.00 |
| Height without packaging (mm) | 650.00 |
|---|---|
| Length without packaging (mm) | 300.00 |
| Weight without packaging (kg) | 85.000 |
| Width without packaging (mm) | 930.00 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 5 |
