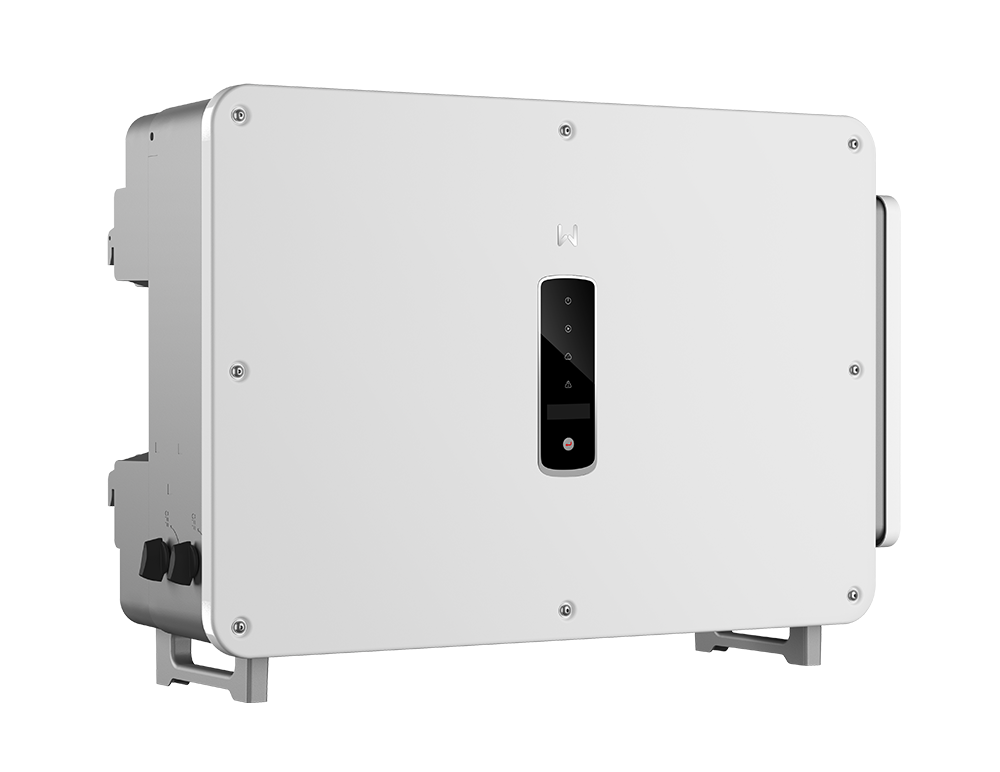

GW100K-GT (100kW - 8 MPPT)
GT Series
Art. no.
6663245
Manufacturer No.
GTU100K-11-01P
Product details
Product information "GW100K-GT (100kW - 8 MPPT)"
The GT Series string inverter is an ideal choice for commercial and industrial (C&I) applications to enhance productivity and realize high power density. Multiple MPPTs and high input current of 21A per DC string increase the overall yield with high-power PV modules. The optional PID (Potential Induced Degradation) recovery function is also supported for better module performance. Safety is always the first priority. Both the DC and AC sides are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an unrivaled set of features, GT Series inverters were conceived to deliver increased return on investment (ROI) for C&I PV projects.
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Max. AC power (kVA) | 110.00 |
| Interface 2 | W-Lan |
| Protection degree | IP66 |
| Min. voltage range input (V) | 180 |
| Start input voltage (V) | 200 |
| Display | with display |
| Number of independent MPPT (pcs) | 8 |
| Max. short circuit current per MPPT (A) | 52,5 |
| Max. generator power DC (kWp) | 110.00 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Step-Up converter | yes |
| Rapid shutdown | yes |
| MPP min. voltage range input (V) | 180.00 |
| AC nominal power (kW) | 100.00 |
| Integrated DC switch | yes |
| Total number of string inputs | 16 |
| Max. input current DC (A) total | 336.00 |
| Max. efficiency (%) | 98.80 |
| Min. temperature ambient (°C) | -30 |
| European efficiency (%) | 98.40 |
| Max. output current (A) | 167.10 |
| Smart Home | no |
| Grid protection | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 42 |
| Max. short circuit current (A) total | 420.00 |
| MPP max. voltage range input (V) | 1000.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | GW100K-GT |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85044084 |
| Width incl. packaging (cm) | 104.00 |
|---|---|
| Length incl. packaging (cm) | 41.60 |
| Amount per Pallet | 1 |
| Pal. dim. LxBxH (mm) | 1072x462x1620 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 75.40 |
| Weight incl. packaging (Kg) | 103.500 |
| Pal. weight (kg) | 414.00 |
| Height without packaging (mm) | 650.00 |
|---|---|
| Length without packaging (mm) | 300.00 |
| Weight without packaging (kg) | 85.000 |
| Width without packaging (mm) | 930.00 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 5 |
