GM3000
indirect measurement with 3 x CT 120A/40mA
Art. no.
6642056
Manufacturer No.
GMT3000-00-00P
Product details
Product information "GM3000"
smart meter, 3ph, 400V AC, 50/60Hz, 3CTs, ratio 120A/40mA, RS485

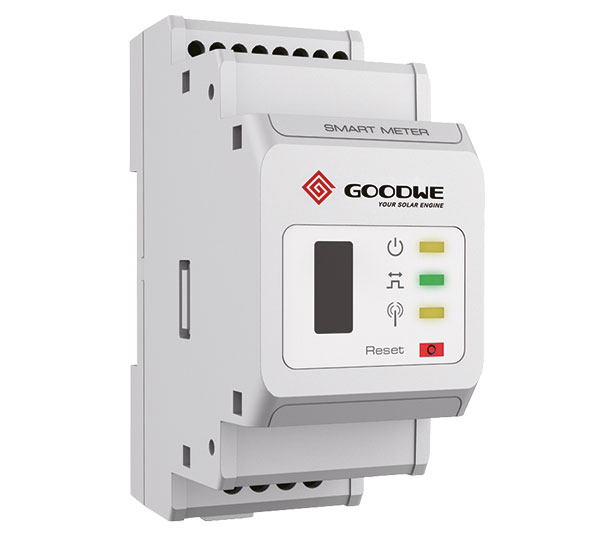

The GM 1000 / 3000 Smart Meter from Goodwe can be installed quickly and easily thanks to the included transducer. It reliably records all energy flows at the grid connection point to enable storage charging management and visualization of self-consumption.
Product features:
• Mains connection: 400V
• Connection phases: 3-phase
• Measurement: indirectly via 3 x CT with 120A/40mA (included in delivery
contain)
• Communication: RS485
• Mounting: DIN rail
Technical details
| Type of AC measurement | indirect |
|---|---|
| Feed-in phases | 3 |
| Max. input current (A) total | 120.00 |
| Mounting type | DIN rail |
| Manufacturer | GoodWe |
|---|---|
| Manufacturer item name | GM3000 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85049090 |
| Length incl. packaging (cm) | 19.00 |
|---|---|
| Width incl. packaging (cm) | 15.00 |
| Height incl. packaging (cm) | 9.00 |
| Weight incl. packaging (Kg) | 0.700 |
| Length without packaging (mm) | 36.00 |
|---|---|
| Width without packaging (mm) | 85.00 |
| Height without packaging (mm) | 67.00 |
| Weight without packaging (kg) | 0.420 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 2 |
