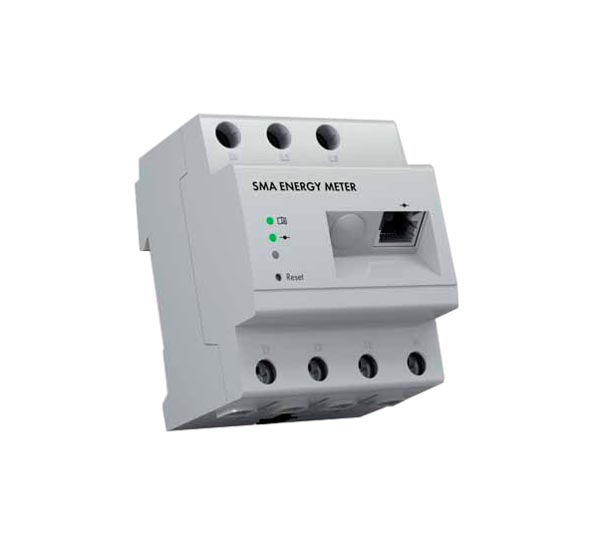

EMETER-20
1/3-phase, direct up to 63A, indirect with CT
Art. no.
6641267
Manufacturer No.
EMETER-20
Product details
Product information "EMETER-20"
for currents >63 A, suitable measuring transformers must be added
The SMA E-Meter can be used to record all energy flows quickly and easily. Thanks to bidirectional balancing measurement, it can be used for both grid connection and additional energy generators. Even higher outputs are no problem thanks to optional measuring transformers. With a width of just 4 sub-units, it fits into any distribution board. Communication with the system takes place universally via the regular house network.
Product features:
• Measuring direction: bidirectional
• Input current: <63 A direct (>63 A indirect with additional CTs)
• Mains connection: 230 / 400 V
• Connection phases: 1 / 3
• Communication: Ethernet
• Mounting: top-hat rail
• Protection class: IP2X
• Dimensions: 70 (4 HP) x 88 x 65 mm (L x W x H)
• Weight: 0.3 kg
Technical details
| Type of AC measurement | direct |
|---|---|
| Mounting type | DIN rail |
| Max. input current (A) total | 63.00 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 90283019 |
| Manufacturer item name | SMA Energy Meter |
| Weight incl. packaging (Kg) | 0.380 |
|---|---|
| Height incl. packaging (cm) | 8.80 |
| Amount per big Box | 1 |
| Length incl. packaging (cm) | 11.30 |
| Width incl. packaging (cm) | 16.50 |
| Width without packaging (mm) | 70.00 |
|---|---|
| Weight without packaging (kg) | 0.300 |
| Height without packaging (mm) | 65.00 |
| Length without packaging (mm) | 88.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 2 |
