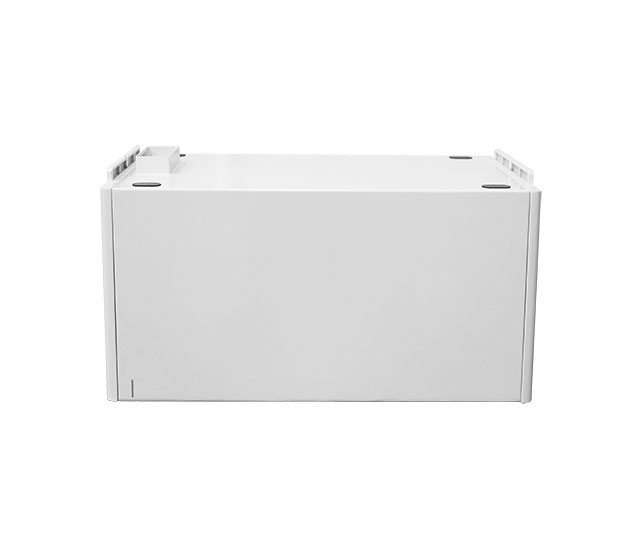

B-Box Premium HVS Battery Module
HV storage module, 2.56 kWh usable
Art. no.
6642221
Manufacturer No.
12911241-00
Product details
Product information "B-Box Premium HVS Battery Module"
Please check compatibility with your system. Retrofitting storage modules requires special preparations and must be carried out in accordance with the manufacturer's instructions.
The wireless stacking concept for high-voltage storage systems was invented with the BYD Battery-Box. The compact and fast installation has now become the standard. The proven LFP cell chemistry, flexible scaling options and unlimited retrofitting make it a powerful success story. The HVS series enables up to 12.8 kWh per tower and up to 3 units in parallel. Ideal from home use to small commercial applications. Compatible with many leading manufacturers.
Product benefits:
- Proven wireless stacking design
- Up to 5 storage modules per unit
- Can be retrofitted indefinitely
Product features Memory:
- Battery capacity (usable): 2.56 kWh
- Expansion time frame: unlimited
- Structure per unit: 2 to 5 battery modules
- Cell chemistry: LFP
- Nominal voltage: 51.2 V
- Protection class: IP55
- Dimensions: 233 x 585 x 298 mm (HxWxD)
- Weight: 38.0 kg
Technical details
| Nominal Capacity (Ah) | 25.00 |
|---|---|
| Max. output current charging (A) | 25.00 |
| Min. temperature ambient (°C) | -10 |
| Usable capacity (kWh) | 2.56 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Nominal voltage DC (V) | 102.40 |
| Protection degree | IP55 |
| Max. output current discharging (A) | 25.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | BYD |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 38.700 |
| UN No. | 3480 |
| Manufacturer item name | HVS 2.56 |
| Height incl. packaging (cm) | 29.60 |
|---|---|
| Weight incl. packaging (Kg) | 42.000 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 36.80 |
| Pal. dim. LxBxH (mm) | 1150x690x1620 |
| Length incl. packaging (cm) | 65.80 |
| Amount per Pallet | 15 |
| Pal. weight (kg) | 583.00 |
| Width without packaging (mm) | 298.00 |
|---|---|
| Weight without packaging (kg) | 38.700 |
| Length without packaging (mm) | 585.00 |
| Height without packaging (mm) | 233.00 |
| Warranty provider | BYD |
|---|
