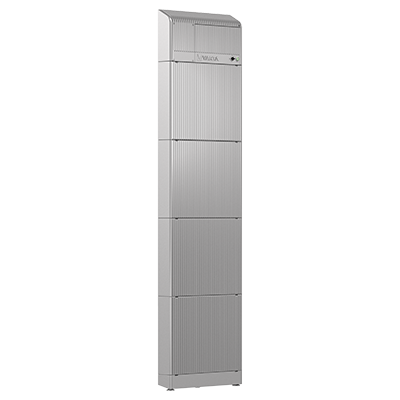

VARTA.wall 20
Product information
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Country approvals must be checked.
With the WALL high-voltage storage system, VARTA is launching its first pure DC storage system on the market. The NCA (nickel-cobalt-aluminum) cells enable a high energy density combined with a high safety standard in accordance with VDE-AR-E 2510-50. 10 to 20 kWh of usable capacity is possible with 2 to 4 battery modules.
Product advantages:
• Attractive and space-saving design
• Certified safety in accordance with VDE-AR-E 2510-50
Product features:
• Battery capacity (usable): 20.0 kWh
• Storage type: High-voltage
• Nominal voltage: 403.2 V
• Extension time frame: 18 months
• System structure: 2 to 4 battery modules + BMS
• Cell chemistry: NCA
• Communication: CAN, RS485, Ethernet, WLAN
• Cooling: passive
• Protection class: IP55
• Dimensions: 2197 x 605 x 100 mm (H x W x D)
• Weight: BMS approx. 15.0 kg, storage 4 x 37.0 kg
• Warranty: 10 years
Compatible with:
• SMA STP Smart Energy
• Kostal Plenticore
Technical details
Battery voltage: | High Voltage |
Usable capacity (kWh): | 20,00 |
Protection degree: | IP55 |
Capacity extendable later: | no |
Nominal voltage DC (V): | 403,20 |
Battery cell chemistry: | NCA |
Intrastat country of origin: | Germany |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Manufacturer: | VARTA |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Dangerous goods Weight (net) (kg): | 148,000 |
Compatible Inverter manufacturer: | Kostal, SMA |
Brand: | VARTA |
Manufacturer item name: | VARTA.wall battery module 5 kWh*VARTA.wall Set Master-/Base Unit |
Manufacturer part number: : | VARTA.wall 20 |
Weight without packaging (kg): | 163,000 |
Height without packaging (mm): | 2.197,00 |
Width without packaging (mm): | 100,00 |
Length without packaging (mm): | 605,00 |
Standard product warranty (yr): | 10 |
Warranty provider: | VARTA |
Downloads
VARTA.wall storage module
VARTA.wall Master Unit + Base
