Lynx U G3 5.0-30
Product information
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

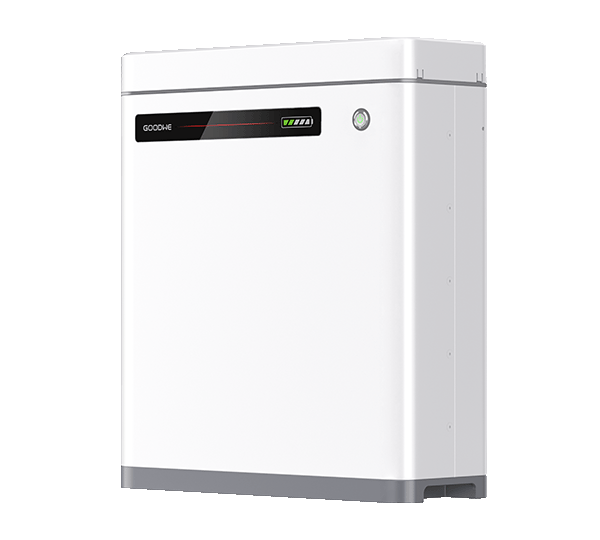

With a usable capacity of 5.0 kWh per unit, the Goodwe Lynx U G3 storage units are the ideal complement to the hybrid and battery inverters of the ES / EM / SBP series. High-quality lithium iron phosphate cells with high cycle stability are the best basis for a reliable home system. With up to 30 units operating in parallel, a wide range of applications are possible, including backup power. Updates and communication are conveniently handled directly via the inverter.
Product advantages:
• Cascadable up to 30 units (150.0 kWh)
• Compact design with a depth of only 160 mm
• Updates and diagnostics via the inverter
Storage product features:
• Battery capacity (usable): 5.0 kWh
• Expansion time window: unlimited
• Cascadable up to 30 units (150.0 kWh)
• Cell chemistry: LFP
• Nominal voltage: 51.2 V
• Protection class: IP65
• Dimensions: 570 x 505 x 160 mm (HxWxD)
• Weight: 50.0 kg
Technical details
Protection degree: | IP65 |
Cell chemistry: | LFP |
Battery voltage: | Low Voltage |
Usable capacity (kWh): | 5,00 |
Max. temperature ambient (°C): | 55 |
Nominal voltage DC (V): | 51,20 |
Max. C-rate: | 0,90 |
Battery voltage.: | Low Voltage |
Battery cell chemistry: | LFP |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Manufacturer: | GoodWe |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Dangerous goods Weight (net) (kg): | 50,000 |
Brand: | GoodWe |
Compatible Inverter manufacturer: | Goodwe |
Manufacturer item name: | LX U5.0-30 |
Supplier item: | BAD0050-04-00P |
Manufacturer.: | GoodWe |
Manufacturer part number: : | Lynx U G3 5.0-30 |
Pack. material: | cardboard box |
Amount per Pallet: | 12 |
Pal. dim. LxBxH (mm): | 1400x1100x142 |
Weight without packaging (kg): | 50,000 |
Height without packaging (mm): | 160,00 |
Width without packaging (mm): | 580,00 |
Length without packaging (mm): | 460,00 |
Product warranty (yr): | 5 |
Warranty provider: | GoodWe |
Standard product warranty (yr): | 5 |
Warranty provider.: | GoodWe |
