Reserva 12.6
Product information
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

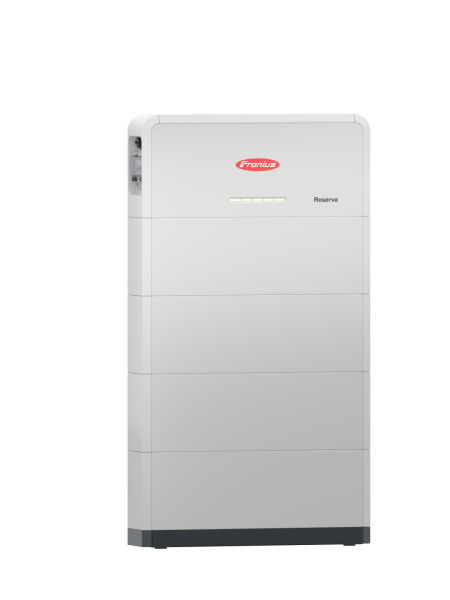

Ultra-flat and powerful - that's the Fronius Reserva high-voltage storage system. Thanks to its high cell voltage, it can be used with high charging power on GEN24 hybrid devices with as few as 2 storage modules. In the proven stacked design, just under 15.8 kWh of usable capacity can be realised with 5 elements. For larger storage requirements, up to 4 systems can be connected in parallel. And with an installation depth of just 176 mm, it even fits behind doors and in small utility rooms.
Product benefits:
- Flexible installation due to small installation depth
- Certified battery safety in accordance with VDE 2510-50
Product features:
- Battery capacity (usable): 12.63 kWh
- DC nominal voltage: 409.6 V
- DC charging current: 32 A
- Extension time window: in clarification
- Systems in parallel: up to 4
- Cell chemistry: LFP
- Protection class: IP65
- Dimensions: 1360 x 780 x 176 mm (HxWxD)
- Weight: BMS + base 19.5 kg, per storage module 33.5 kg
Compatible with:
- Symo GEN24 plus
- Symo GEN24 SC
- Primo GEN24 plus
Technical details
Protection degree: | IP65 |
Cell chemistry: | LFP |
Battery voltage: | High Voltage |
Max. temperature ambient (°C): | 55 |
Usable capacity (kWh): | 12,63 |
Nominal voltage DC (V): | 409,60 |
Min. temperature ambient (°C): | -20 |
Battery cell chemistry: | LFP |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Manufacturer: | Fronius |
Intrastat country of origin: | Austria |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Dangerous goods Weight (net) (kg): | 134,000 |
Brand: | Fronius |
Compatible Inverter manufacturer: | Fronius |
Manufacturer item name: | Reserva 12.6 |
Manufacturer part number: : | Reserva 12.6 |
Weight without packaging (kg): | 153,500 |
Height without packaging (mm): | 176,00 |
Width without packaging (mm): | 772,00 |
Length without packaging (mm): | 1.390,00 |
Product warranty (yr): | 10 |
Standard product warranty (yr): | 10 |
Warranty provider: | Fronius |
Downloads
Reserva storage module
Reserva BMS + base
