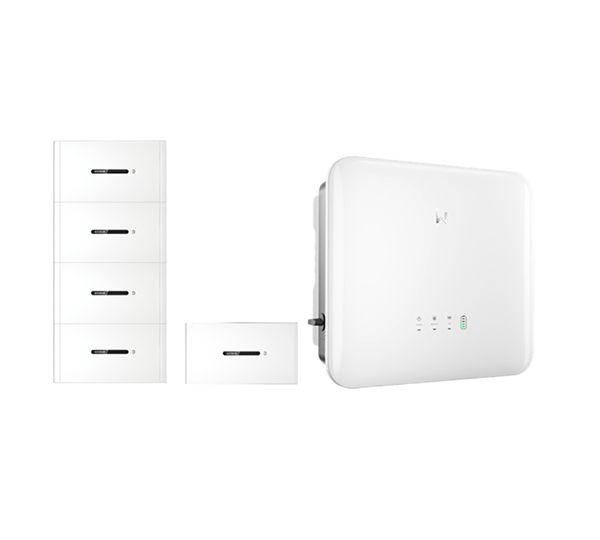

Lynx D25.0-10 + GW15K-ET-20 G2

Goodwe

Art-Nr. 0161678

Lynx D25.0-10 + GW15K-ET-20 G2

HV storage system, 25.0 kWh usable, 3-phase

Lynx D 5.0-10 | HV storage, 5.0 kWh usable, Version -08

Goodwe

Art.-Nr. 0158717

Lynx D 5.0-10

HV storage, 5.0 kWh usable, Version -08

Goodwe

Art.-Nr. 0158718

Stand for Lynx D 5.0-10

Base for stand mounting

GW15K-ET-20 G2 | Hybrid inverter, 3 MPPT, 3-phase, AFCI, SPD Type 2

Goodwe

Art.-Nr. 0160692

GW15K-ET-20 G2

Hybrid inverter, 3 MPPT, 3-phase, AFCI, SPD Type 2

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

The communication dongle included in the delivery meets the requirements for cyber security.

According to the GoodWe compatibility table, no logger is approved for this device series. Therefore, the control-related connection of additional PV inverters is not possible.

This set contains the components for floor mounting the storage unit. If required, this can be replaced with the wall mounting kit in the same quantity.

A maximum of 4 storage modules can be stacked on top of each other. For > 4 modules, installation in two separate towers is required.

The 2nd generation of the Goodwe ET-20 hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET+ series has been enhanced and improved in many areas. With the familiar 16 amp input current per MPP tracker, all current module series can be connected. With an integrated smart meter including 3 Cts and a communication dongle, as well as AC+DC surge protection and AFCI arc detection, the system is complete. The proven backup connection provides uninterrupted power to selected circuits. The new Lynx D storage systems are also a real pleasure to use in this combination. Quick and easy installation or retrofitting is possible thanks to the module's integrated BMS. With up to 8 batteries, a usable capacity of 40.0 kWh is easily achieved.

Product advantages:

• Emergency power with UPS function

• 16 A input current per MPPT

• 3 x CTs + Wi-Fi-LAN dongle with cyber security included

• Unlimited expansion thanks to integrated BMS

• Up to 8 storage elements in the system (40.0 kWh)

System product features:

• AC nominal power: 15.0 kW

• Feed-in phases: 3

• AC grid voltage: 400 V

• Number of MPP trackers: 3

• Max. DC input voltage: 1000 V

• AFCI arc detection: yes – version 3.0

• DC overvoltage protection: Type 2

• AC overvoltage protection: Type 2

• Storage type: High voltage

• Backup power capability: yes, via EPS connection

• Interfaces: RS485, CAN, Wi-Fi, LAN

• Protection class: IP66

• Cooling: passive

• Dimensions: 460 x 496 x 221 mm (HxWxD)

• Weight: 25.0 kg

Storage Product Features:

• Battery Capacity (usable): 25.0 kWh

• Expansion Time Window: Unlimited

• System Configuration: 1 to 8 Units

• Cell Chemistry: LFP

• Nominal Voltage: 320 - 480 V

• Communication: CAN

• Cooling: Passive

• Protection Class: IP66

• Installation: Floor (wall mounting optional)

• Dimensions: 420 + 1560 x 700 x 170 mm (HxWxD)

• Weight: 52.0 kg per module

• Warranty: 10 years

Scope of Delivery:

• 1 x Goodwe GW15K-ET-20 G2 Hybrid Inverter (Item 0160692)

• 5 x Goodwe Lynx D 5.0-11 Storage Module (Item 0158717)

• 2 x Goodwe Lynx D Stand (Item 0158718)

view more Show less

Technical details

Arc Fault Circuit Interrupter:	yes
Topology:	transformerless
Feed-in phases:	3
Protection degree:	IP66
AC nominal power (kW):	15,00
Max. efficiency (%):	98,00
Max. input voltage DC (V):	1.000,00
European efficiency (%):	97,20
Max. generator power DC (kWp):	24,00
Battery voltage:	High Voltage
Number of independent MPPT (pcs):	3
Display:	w/o display
Amount connected phases:	3
Interfaces:	RS485, W-Lan
Max. AC power (kVA):	15,00
Usable capacity (kWh):	25,00
Inverter type:	hybrid inverter
Commercial system:	no
Integrated DC switch:	yes
Backup system light:	yes
MPP max. voltage range input (V):	850,00
MPP min. voltage range input (V):	120,00
Capacity extendable later:	yes without restriction
Start input voltage (V):	150
Max. short circuit current (A) total:	72,00
Max. temperature ambient (°C):	53
Max. output current (A):	21,70
Decibel:	30
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	380, 400
Surge protection AC:	type 2
Surge protection DC:	type 2
Total number of string inputs:	3
Max. input current DC (A) total:	48,00
Battery voltage.:	High Voltage
Feed-in phases.:	3
AC grid frequency (Hz)..:	50, 60
Battery cell chemistry:	LFP
Max. input current per MPPT (A).:	16.0/16.0/16.0
Max. short circuit current per MPPT (A):	24.0/24.0/24.0

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	GoodWe
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	313,400
Brand:	GoodWe
Compatible battery manufacturer:	Goodwe
Manufacturer.:	GoodWe
Manufacturer item name:	LX D25.0-10*GW15K-ET-20
Manufacturer part number: :	Lynx D25.0-10 + GW15K-ET-20 G2

Weight without packaging (kg):

290,400

Warranty provider:

GoodWe
