B-Box HVM 13.8 + STP 5.0 Smart Energy

BYD + SMA

Art-Nr. 0161046

B-Box HVM 13.8 + STP 5.0 Smart Energy

HV storage system, 13.8 kWh, BCU 2.0, 3-phase

Home Manager 2.0 | Energy management, 1/3-phase, direct up to 63A

SMA

Art.-Nr. 0126650

Home Manager 2.0

Energy management, 1/3-phase, direct up to 63A

Battery-Box Premium HVM 2,76 kWh | HV storage module, 2.76 kWh usable

BYD

Art.-Nr. 0131400

Battery-Box Premium HVM 2,76 kWh

HV storage module, 2.76 kWh usable

Sunny Tripower 5.0 SE | Hybrid inverter, 3-phase

SMA

Art.-Nr. 0150367

Sunny Tripower 5.0 SE

Hybrid inverter, 3-phase

B-Box Premium HV BCU + Base 2.0 | Controller for HV storage series HVM + HVS

BYD

Art.-Nr. 0159471

B-Box Premium HV BCU + Base 2.0

Controller for HV storage series HVM + HVS

Product information

CAUTION:

UN 3480 Lithium ion batteries / Transport hazard class 9 / (E)

Packing Group II

This high-class storage package combines SMA's 3-phase Smart Energy Hybrid inverters with BYD's HVM high-voltage storage systems. The hybrids, which are available in four performance classes, feature a full range of equipment from surge protection to interfaces. Experience has shown that the visualization in the SMA Sunny Portal is of the highest standard. The HVM series storage systems are also an integral part of the PV storage world and have proven themselves in countless systems over many years. Now with even faster installation thanks to the new BCU 2.0.

Product advantages:

• Well-known and proven manufacturers

• Integrated AC + DC type 2 surge protection

• Storage can be expanded indefinitely

Product features System:

• AC power: 5.0 kW

• Number of MPPT: 2

• Input voltage: 210 - 800 V DC

• AC connection: 3-phase

• AC/DC surge protection: type 2 each

• Topology: transformerless

• Communication: WLAN, Ethernet, CAN

• Interfaces: 5 x DI (FRE), 1 x DO

• Protection class: IP65

• Cooling: passive

• Weight: 30.0 kg

• Dimensions: 500 x 598 x 173 mm (W x H x D)

Product features Storage:

• Battery capacity (usable): 13.8 kWh

• Storage type: high voltage

• Nominal voltage: 256 V

• Time window extension: unlimited

• Number of storage modules in one unit: 4 to 8

• Number of units in parallel: up to 3

• Cell chemistry: LFP

• Communication: CAN, RS485

• COM connections: RJ45

• BAT connections: MC4

• Cooling: passive

• Protection class: IP55

• Dimensions: 1461 x 585 x 298 mm (H x W x D)

• Weight: 205.0 kg

Conclusion:

BYD and SMA - a combination you can't go wrong with. Proven and reliable.

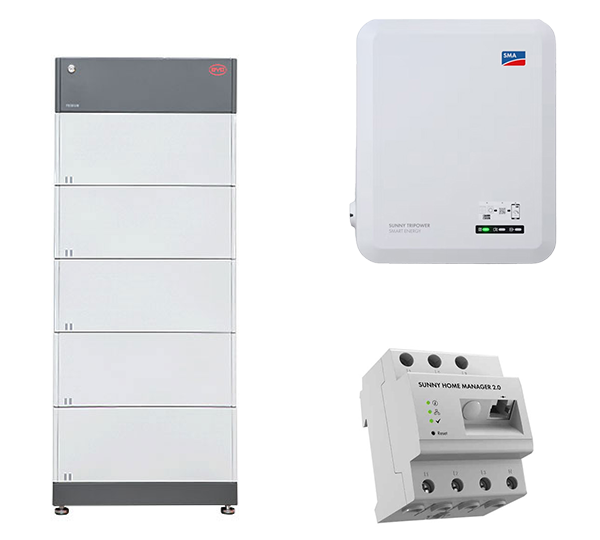

Scope of delivery:

• 1 x SMA Sunny Tripower SE 5.0 (item 0150367)

• 1 x SMA Home Manager 2.0 (item 0126650)

• 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

• 5 x BYD HVM storage module (item 0131400)

view more Show less

Technical details

Topology:	transformerless
Number of independent MPPT (pcs):	2
Arc Fault Circuit Interrupter:	no
Max. AC power (kVA):	5,00
AC nominal power (kW):	5,00
European efficiency (%):	97,30
Max. efficiency (%):	98,20
Max. input voltage DC (V):	1.000,00
Max. generator power DC (kWp):	7,50
Usable capacity (kWh):	13,80
Display:	w/o display
Interfaces:	Dig. in, Dig. out, Ethernet, W-Lan
Backup system full:	no
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
Integrated DC switch:	yes
Start input voltage (V):	180
Shadow management:	yes
Backup system light:	yes
DC connector type:	SUNCLIX
Contact ripple control receiver:	yes
MPP max. voltage range input (V):	800,00
MPP min. voltage range input (V):	210,00
Capacity extendable later:	yes without restriction
Max. short circuit current per MPPT (A):	20/20
Max. short circuit current (A) total:	40,00
Contact for self-consumption optimization (e.g. for heat pump):	1
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid voltage (V):	220, 230, 240, 380, 400, 415
Total number of string inputs:	2
Max. input current DC (A) total:	25,00
Surge protection AC:	type 2
Surge protection DC:	type 2
Battery voltage.:	High Voltage
Feed-in phases.:	3
AC grid frequency (Hz)..:	50
Max. input current per MPPT (A).:	12,5/12,5
Battery cell chemistry:	LFP
Max. output current (A):	7,50

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	BYD + SMA
Brand:	BYD, SMA
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	190,000
Manufacturer.:	BYD, SMA
Manufacturer item name:	HVM 13.8BCU2.0BaseSunny Tripower 5.0 Smart EnergySunny Home Manager 2.0
Manufacturer part number: :	B-Box HVM 13.8 + STP 5.0 Smart Energy

Weight without packaging (kg):

235,260

Warranty provider.:

BYD, SMA
