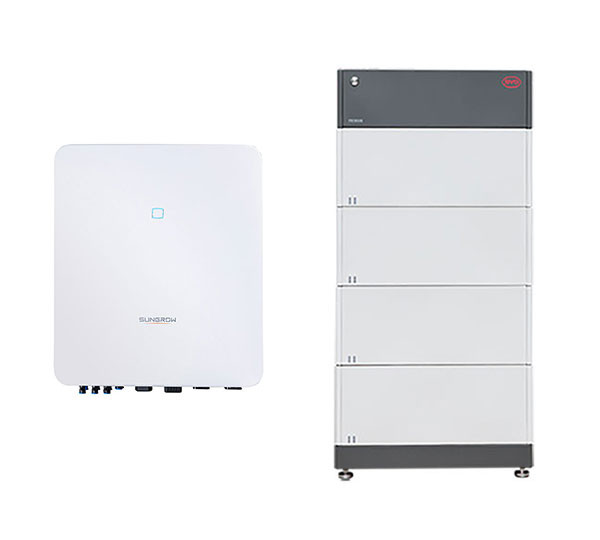

B-Box Premium HVS 10.2 + SH8.0RT-V112

BYD + Sungrow

Art-Nr. 0160058

B-Box Premium HVS 10.2 + SH8.0RT-V112

HV storage system, 10.24 kWh, BCU 2.0, 3-phase

Battery-Box Premium HVS 2,56 kWh | HV storage module, 2.56 kWh usable

BYD

Art.-Nr. 0131385

Battery-Box Premium HVS 2,56 kWh

HV storage module, 2.56 kWh usable

B-Box Premium HV BCU + Base 2.0 | Controller for HV storage series HVM + HVS

BYD

Art.-Nr. 0159471

B-Box Premium HV BCU + Base 2.0

Controller for HV storage series HVM + HVS

SH8.0RT-V112 | Hybrid inverter, 2 MPPT, 3-phase

Sungrow

Art.-Nr. 0152288

SH8.0RT-V112

Hybrid inverter, 2 MPPT, 3-phase

Product information

CAUTION:
UN 3480 Lithium ion batteries / Transport hazard class 9 / (E) Packing Group II

WiNet module (for WLAN and LAN / Ethernet connection) and 3-phase meter are included in the scope of delivery of the inverter.

This proven complete package from Sungrow and BYD is versatile and flexible. The hybrid inverter comes fully equipped, including Type 2 surge protection for the module and grid side, as well as interfaces for Wi-Fi, network, and FRE. The BYD HVS high-voltage storage system enables up to 12.8 kWh per tower and up to three units in parallel. Ideal for everything from home use to small commercial applications. Even faster installation thanks to the new BCU 2.0 and compatible with many leading manufacturers.

Product advantages:

• Integrated AC + DC surge protection type 2

• Storage can be expanded indefinitely

• Up to 5 systems in parallel operation

System product features:

• AC power: 8.0 kW

• Number of MPPTs: 2

• AC connection: 3-phase

• Communication: WiFi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO

• Protection class: IP65

• Cooling: passive

• Weight: 27.0 kg

• Includes WiNet dongle and smart meter

Storage product features:

• Battery capacity (usable): 10.24 kWh

• Nominal voltage: 409.6 V

• Expansion time window: unlimited

• Configuration per unit: 2 to 5 battery modules

• Number of units in parallel: 3

• Cell chemistry: LFP

• COM ports: RJ45

• BAT ports: MC4

• Protection class: IP55

• Dimensions: 1228 x 585 x 298 mm (HxWxD)

• Weight: 167.0 kg

Conclusion:

Quick and easy installation, easy startup via smartphone, plus flexibly expandable storage – that's what a storage package should be.

Scope of delivery:

• 1 x SH8.0RT-V112 Hybrid Inverter, including WiNet dongle and meter (item 0152288)

• 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

• 4 x BYD HVS storage modules (item 0131385)

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Max. efficiency (%):	98,40
European efficiency (%):	97,90
Number of independent MPPT (pcs):	2
Max. input voltage DC (V):	1.000,00
Max. AC power (kVA):	8,00
AC nominal power (kW):	8,00
Max. generator power DC (kWp):	12,00
Battery voltage:	High Voltage
Usable capacity (kWh):	10,24
Protection degree:	IP55
Display:	w/o display
Interfaces:	Ethernet, RS485, W-Lan
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
Integrated DC switch:	yes
Max. temperature ambient (°C):	50
MPP min. voltage range input (V):	200,00
MPP max. voltage range input (V):	950,00
Max. short circuit current (A) total:	36,00
Decibel:	30
Start input voltage (V):	250
Max. short circuit current per MPPT (A):	16,0
Max. output current (A):	12,10
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	220, 230, 240, 380, 400, 415
Total number of string inputs:	2
Max. input current DC (A) total:	25,00
Surge protection AC:	type 2
Surge protection DC:	type 2
Min. temperature ambient (°C):	-10
Battery voltage.:	High Voltage
Feed-in phases.:	3
AC grid frequency (Hz)..:	50
Max. input current per MPPT (A).:	12,5
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	BYD + Sungrow
Brand:	BYD, Sungrow
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	154,800
Manufacturer item name:	HVS 10.2SH8.0RT-20BCU2.0*Base
Manufacturer part number: :	B-Box Premium HVS 10.2 + SH8.0RT-V112

Weight without packaging (kg):

196,760
