BYD HVM 19.3 + VERTO PLUS 20.0

BYD + Fronius

Art-Nr. 0160051

BYD HVM 19.3 + VERTO PLUS 20.0

HV storage system, 19.32 kWh, BCU 2.0, 3-phae

Battery-Box Premium HVM 2,76 kWh | HV storage module, 2.76 kWh usable

BYD

Art.-Nr. 0131400

Battery-Box Premium HVM 2,76 kWh

HV storage module, 2.76 kWh usable

SMART METER TS 65A-3 | bidirectional counter

Fronius

Art.-Nr. 0151650

SMART METER TS 65A-3

bidirectional counter

Verto Plus 20.0 | Hybrid-IV, 3 MPPT, 3-phasig

Fronius

Art.-Nr. 0159334

Verto Plus 20.0

Hybrid-IV, 3 MPPT, 3-phasig

B-Box Premium HV BCU + Base 2.0 | Controller for HV storage series HVM + HVS

BYD

Art.-Nr. 0159471

B-Box Premium HV BCU + Base 2.0

Controller for HV storage series HVM + HVS

Product information

CAUTION:

UN 3480 Lithium ion batteries / Transport hazard class 9 / (E) Packing Group II

The RJ45 termination plug for the data bus included in the scope of delivery must be finished on site. To do this, insert a wire bridge between pins 1 + 6 (viewed from above on the flat side of the plug with the pin contact surfaces, cable entry at the bottom, pins ascending from left to right) and crimp it. No actual resistor is required.

As with the Fronius GEN24 devices, the ‘plus’ makes all the difference in the new Verto series. The Verto Plus hybrid inverters are already equipped with a powerful high-voltage storage connection ex works. With 15 to 33 kW, they are the ideal system modules in the small-commercial segment. The proven complete communication equipment is complemented by AC and DC-side overvoltage protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe. In this combination with a veteran of the PV storage world - the BYD HVM system. Proven, reliable and indefinitely expandable. Now even faster installation thanks to the new BCU 2.0.

Product advantages:

- 28 A input current per MPPT / string

- 50 A charging current to the high-voltage storage system

- 3-phase backup current possible with Fronius Backup Switch + Controller

- Storage can be expanded indefinitely

- Certified battery safety in accordance with VDE 2510-50

Product features System:

- AC rated power: 20.0 kW

- Mains connection: 3-phase

- AC mains voltage: 400 V

- Number of MPPT: 3

- Max. DC input voltage: 1000 V

- Max. DC input current: 28 A per MPPT

- DC overvoltage protection: Type 1+2

- AC overvoltage protection: Type 2

- DC connector type: PV - Stäubli MC4, Bat - Stäubli MC4 Evo Stor

- Number of battery connections: 1

- Communication: WLAN, Ethernet

- Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO

- Protection class: IP66

- Cooling: active

- Weight: 43.0 kg

- Dimensions: 865 x 574 x 279 mm (H x W x D)

- Warranty: 2.5 years + a further 5 years after free registration

Product features Memory:

- Battery capacity (usable): 19.32 kWh

- Storage type: High-voltage

- Nominal voltage: 358.4 V

- Extension time window: unlimited

- Number of storage modules in one unit: 4 to 8

- Number of units in parallel: up to 3

- Cell chemistry: LFP

- Communication: CAN, RS485

- COM connectors: RJ45

- BAT connectors: MC4

- Cooling: passive

- Protection class: IP55

- Dimensions: 1927 x 585 x 298 mm (HxWxD)

- Weight: BMS 15.0 kg, 7 x memory 38.0 kg each

Summary:

The Verto Plus is Fronius' entry into the small commercial segment. Top combination with the BYD HVM.

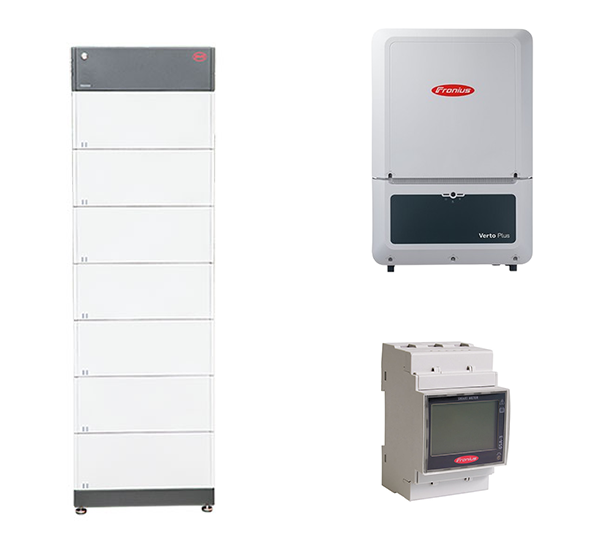

Scope of delivery:

- 1 x Fronius Verto Plus 20.0 Hybrid-WR (article 0159334)

- 1 x Fronius Smart Meter TS 65A-3 (article 0151650)

- 1 x BYD BCU HV BCU2.0 (article 0159471)

- 7 x BYD HVM storage module (article 0131400)

view more Show less

Technical details

Arc Fault Circuit Interrupter:	yes
Feed-in phases:	3
AC nominal power (kW):	20,00
Max. generator power DC (kWp):	30,00
DC connector type:	MC4
Max. input voltage DC (V):	1.000,00
Battery voltage:	High Voltage
Usable capacity (kWh):	19,32
Number of independent MPPT (pcs):	3
Protection degree:	IP55
Display:	w/o display
Max. AC power (kVA):	20,00
Interfaces:	Ethernet, RS485, W-Lan
Inverter type:	hybrid inverter
Commercial system:	no
Integrated DC switch:	yes
Offgrid usable:	no
Max. temperature ambient (°C):	50
Backup system full:	yes with supply
Max. short circuit current per MPPT (A):	50
MPP min. voltage range input (V):	240,00
MPP max. voltage range input (V):	870,00
Capacity extendable later:	yes without restriction
Start input voltage (V):	150
Max. short circuit current (A) total:	150,00
Max. output current (A):	30,33
Backup system light:	yes with supply
Max. discharging power (kW):	10,75
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	220, 230, 380, 400
Surge protection AC:	type 2
Min. temperature ambient (°C):	-10
Total number of string inputs:	6
Surge protection DC:	type 1 and type 2
Max. nominal charging power (kW):	10,75
Max. input current DC (A) total:	84,00
Battery voltage.:	High Voltage
Feed-in phases.:	3
Max. input current per MPPT (A).:	28
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	BYD + Fronius
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Brand:	BYD, Fronius
Compatible battery manufacturer:	BYD
Dangerous goods Weight (net) (kg):	268,800
Manufacturer item name:	HVM 19.3*Verto plus 20.0
Manufacturer.:	BYD, Fronius
Manufacturer part number: :	BYD HVM 19.3 + VERTO PLUS 20.0
