BYD B-Box HVM 8.3 + GW5000N-EH

BYD + Goodwe

Art-Nr. 0160004

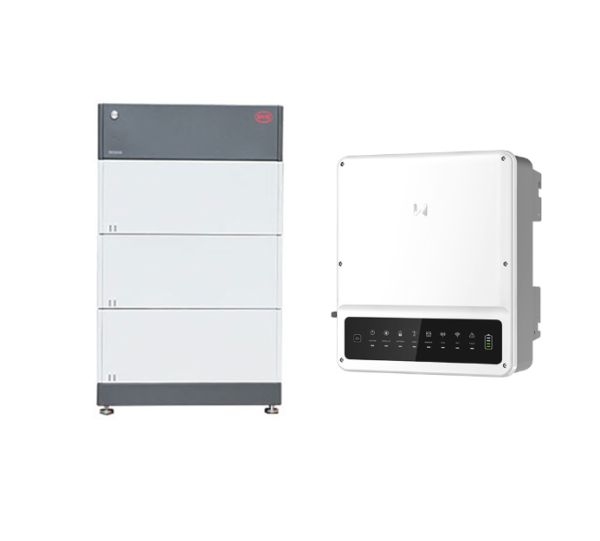

BYD B-Box HVM 8.3 + GW5000N-EH

HV storage system, 8.28 kWh, BCU 2.0, 1-phase

Battery-Box Premium HVM 2,76 kWh | HV storage module, 2.76 kWh usable

BYD

Art.-Nr. 0131400

Battery-Box Premium HVM 2,76 kWh

HV storage module, 2.76 kWh usable

B-Box Premium HV BCU + Base 2.0 | Controller for HV storage series HVM + HVS

BYD

Art.-Nr. 0159471

B-Box Premium HV BCU + Base 2.0

Controller for HV storage series HVM + HVS

GW5000N-EH HYBRID (+ DC-Switch, Wifi, 3P Meter) | Hybrid inverter, 2 MPPT, 1-phase

Goodwe

Art.-Nr. 0152932

GW5000N-EH HYBRID (+ DC-Switch, Wifi, 3P Meter)

Hybrid inverter, 2 MPPT, 1-phase

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

The RJ45 termination plug for the data bus included in the scope of delivery must be finished on site. To do this, insert a wire bridge between pins 1 + 6 (viewed from above on the flat side of the plug with the pin contact surfaces, cable entry at the bottom, pins ascending from left to right) and crimp it. No actual resistor is required.

In addition to a DC input current of 16 amps, the EH series also boasts a true, uninterruptible UPS function for the backup connection. This allows even sensitive loads to operate without worry in any grid situation. Combined with BYD's proven HVM high-voltage series, it's a powerful system for home use. Now with even faster installation thanks to the new BCU 2.0.

Product advantages:

• Emergency power with UPS function < 10 ms

• 16 A input current per MPPT

• Energy meter included with inverter

• Storage can be upgraded at any time up to 22.1 kWh

System product features:

• AC power: 5.0 kW*

• Grid connection: 1-phase

• AC mains voltage: 400 V

• Number of MPPTs: 2

• DC surge protection: Type 2

• Communication: Wi-Fi, Ethernet (optional), RS485, CAN

• Protection class: IP65

• Cooling: passive

• Dimensions: 354 x 433 x 147 mm (W x H x D)

• Weight: 17.0 kg

Storage product features:

• Battery capacity (usable): 8.28 kWh

• Storage type: High-voltage

• Nominal voltage: 153.6 V

• Expansion time window: unlimited

• Number of storage modules in one unit: 3 to 8

• Number of units in parallel: Up to 3

• Cell chemistry: LFP

• Communication: CAN, RS485

• COM ports: RJ45

• BAT ports: MC4

• Cooling: passive

• Protection class: IP55

• Dimensions: 995 x 585 x 298 mm (HxWxD)

• Weight: 129.0 kg

*Limited to 4.6 kVA according to VDE-AR-N 4105

Conclusion:

Good manufacturer – good combination. Always happy to buy again.

Scope of delivery:

• 1 x GW5000N-EH hybrid inverter, including meter (item 0152932)

• 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

• 3 x BYD HVM storage modules (item 0131400)

view more Show less

Technical details

Topology:	transformerless
Number of independent MPPT (pcs):	2
Arc Fault Circuit Interrupter:	no
Max. AC power (kVA):	5,00
AC nominal power (kW):	5,00
Max. generator power DC (kWp):	7,50
Max. efficiency (%):	97,60
Protection degree:	IP55
European efficiency (%):	97,00
Display:	w/o display
Max. input voltage DC (V):	580,00
Interfaces:	RS485, W-Lan
Usable capacity (kWh):	8,28
Inverter type:	hybrid inverter
Commercial system:	no
Integrated DC switch:	yes
Max. temperature ambient (°C):	50
MPP min. voltage range input (V):	100,00
MPP max. voltage range input (V):	550,00
Max. short circuit current per MPPT (A):	21,2
Max. short circuit current (A) total:	42,40
Max. output current (A):	21,70
Start input voltage (V):	90
Cos phi.:	+/- 0,8, 1
AC grid voltage (V):	220, 230
Total number of string inputs:	2
Max. input current DC (A) total:	32,00
Surge protection DC:	type 2
Min. temperature ambient (°C):	-10
Battery voltage.:	High Voltage
AC grid frequency (Hz)..:	50, 60
Feed-in phases.:	1
Max. input current per MPPT (A).:	16
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	BYD + Goodwe
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Brand:	BYD, GoodWe
Manufacturer.:	BYD, GoodWe
Dangerous goods Weight (net) (kg):	115,200
Manufacturer item name:	HVM 8.3GW5000N-EHBCU2.0*Base
Manufacturer part number: :	BYD B-Box HVM 8.3 + GW5000N-EH

Weight without packaging (kg):

147,160
