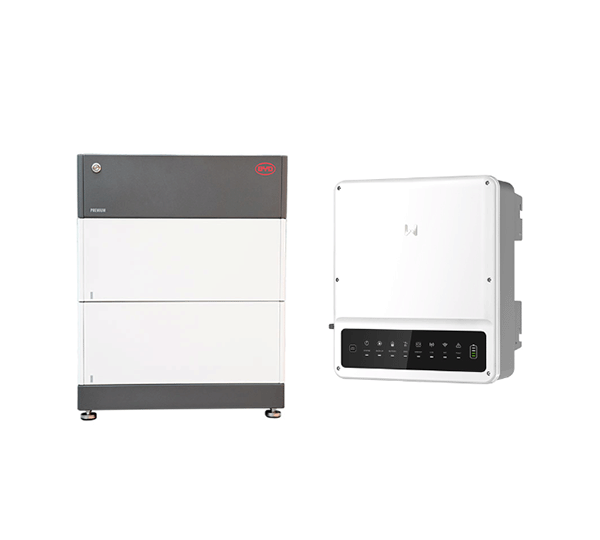

BYD B-Box HVS 5.1 + GW5000N-EH
Product information
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
In addition to a DC input current of 16 amps, the Goodwe EH series also boasts a true uninterruptible UPS function for the backup connection. This allows even sensitive loads to operate without worry in any grid situation. Combined with BYD's proven HVS high-voltage series, it's a powerful system for home use. Now even faster installation thanks to the new BCU 2.0.
Product advantages:
• Emergency power with UPS function < 10 ms
• 16 A input current per MPPT
• Energy meter included with inverter
• Storage can be upgraded at any time up to 12.8 kWh
System product features:
• AC power: 5.0* kW
• Grid connection: 1-phase
• AC mains voltage: 400 V
• Number of MPPTs: 2
• DC surge protection: Type 2
• Communication: Wi-Fi, Ethernet (optional), RS485, CAN
• Protection class: IP65
• Cooling: passive
• Dimensions: 354 x 433 x 147 mm (W x H x D)
• Weight: 17.0 kg
Storage product features:
• Battery capacity (usable): 5.12 kWh
• Storage type: High-voltage
• Nominal voltage: 204.8 V
• Expansion time window: unlimited
• Number of storage modules in one unit: 2 to 5
• Number of units in parallel: Up to 3
• Cell chemistry: LFP
• Communication: CAN, RS485
• COM ports: RJ45
• BAT ports: MC4
• Cooling: passive
• Protection class: IP55
• Dimensions: 762 x 585 x 298 mm (HxWxD)
• Weight: 91.0 kg
*Limited to 4.6 kVA according to VDE-AR-N 4105
Conclusion:
Good manufacturer – good combination. I'd be happy to buy again.
Scope of delivery:
• 1 x GW5000N-EH hybrid inverter, including meter (item 0152932)
• 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)
• 2 x BYD HVS storage modules (item 0131385)
Technical details
Topology: | transformerless |
Number of independent MPPT (pcs): | 2 |
Arc Fault Circuit Interrupter: | no |
Max. AC power (kVA): | 5,00 |
AC nominal power (kW): | 5,00 |
Max. generator power DC (kWp): | 7,50 |
Usable capacity (kWh): | 5,12 |
Max. efficiency (%): | 97,60 |
Protection degree: | IP55 |
European efficiency (%): | 97,00 |
Display: | w/o display |
Max. input voltage DC (V): | 580,00 |
Interfaces: | RS485, W-Lan |
Inverter type: | hybrid inverter |
Commercial system: | no |
Integrated DC switch: | yes |
Max. temperature ambient (°C): | 50 |
MPP min. voltage range input (V): | 100,00 |
MPP max. voltage range input (V): | 550,00 |
Max. short circuit current per MPPT (A): | 21,2 |
Max. short circuit current (A) total: | 42,40 |
Max. output current (A): | 21,70 |
Start input voltage (V): | 90 |
Cos phi.: | +/- 0,8, 1 |
AC grid voltage (V): | 220, 230 |
Total number of string inputs: | 2 |
Max. input current DC (A) total: | 32,00 |
Surge protection DC: | type 2 |
Min. temperature ambient (°C): | -10 |
Battery voltage.: | High Voltage |
AC grid frequency (Hz)..: | 50, 60 |
Feed-in phases.: | 1 |
Max. input current per MPPT (A).: | 16 |
Battery cell chemistry: | LFP |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Manufacturer: | BYD + Goodwe |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Brand: | BYD, GoodWe |
Manufacturer.: | BYD, GoodWe |
Dangerous goods Weight (net) (kg): | 75,400 |
Manufacturer item name: | HVS 5.1*GW5000N-EH*BCU2.0*Base |
Manufacturer part number: : | BYD B-Box HVS 5.1 + GW5000N-EH |
Weight without packaging (kg): | 107,360 |
