SunESS 15K + 15.0 storage

Sunwoda Energy

Art-Nr. 0159842

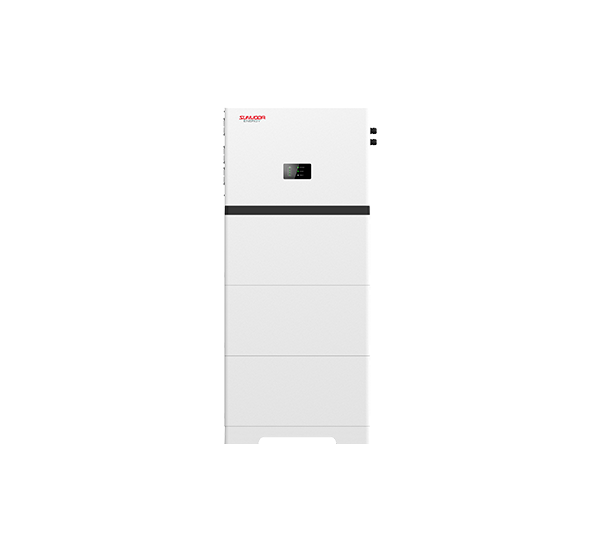

SunESS 15K + 15.0 storage

HV storage system, 15.0 kWh usable, 3-phase

Product information

The Sunwoda hybrid inverter is only compatible with the Sunwoda SunESS storage system.

As one of the largest cell manufacturers in the world, Sunwoda Energy is already involved in many well-known products. With the SunESS All-in-One system, it is now stepping into the limelight to get directly involved in the residential segment. The hybrid inverter forms a harmonious and visually appealing unit with the storage modules. The power classes from 8 to 15 kW are practically equipped with all the necessary interfaces. Input currents of up to 30 amps and integrated type 2 overvoltage protection create safe and flexible application options. The storage modules, each with 5 kWh, can be cascaded 8 times. The backup connection ensures safe operation of sensitive loads with a switchover time of <10 ms.

Product advantages:

- Reliable compatibility thanks to standardised manufacturer

- Up to 30 A input current per MPPT

- Integrated AC+DC type 2 overvoltage protection

- Integrated BMS for storage systems up to 20 kWh*

Product features System:

- AC power: 15.0 kW

- AC connection: 400 V, 3-phase

- Number of MPPT: 2

- DC input current: 15A MPPT 1, 30A MPPT 2

- Communication: Wifi

- Interfaces: Wifi CAN, RS485

- Protection class: IP65

- Cooling: passive

- Dimensions: 650 x 480 x 250 mm (W x H x D)

- Weight: 41.0 kg

- Warranty: 12 years

- Socket + energy meter + 3 x CT included in the scope of delivery

Product features Memory:

- Battery capacity (usable): 15.0 kWh

- Storage type: High-voltage

- Extension time window: unlimited

- Number of storage modules in a unit: 1 to 8*

- Cell chemistry: LFP

- Communication: CAN

- Cooling: passive

- Protection class: IP65

- Dimensions: 1505 x 650 x 250 mm (HxWxD)

- Weight: 202.0 kg

Conclusion:

The new insider tip for your next residential system. Everything inside - everything on it.

Scope of delivery:

- 1 x Sunwoda SunESS SW 15K Hybrid WR, incl. base, metres + CTs (article 0159803)

- 3 x Sunwoda SunESS 5.0 storage module (article 0159799)

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Number of independent MPPT (pcs):	2
Max. AC power (kVA):	16,50
AC nominal power (kW):	15,00
Max. generator power DC (kWp):	22,50
Protection degree:	IP65
Max. input voltage DC (V):	1.000,00
Battery voltage:	High Voltage
Usable capacity (kWh):	15,00
Max. efficiency (%):	97,80
European efficiency (%):	97,00
Backup system full:	yes
Interfaces:	Bluetooth, RS485
Inverter type:	hybrid inverter
Integrated DC switch:	yes
Max. temperature ambient (°C):	50
Start input voltage (V):	180
Backup system light:	yes
Max. output current (A):	25,00
MPP min. voltage range input (V):	180,00
MPP max. voltage range input (V):	850,00
Capacity extendable later:	yes without restriction
Max. short circuit current per MPPT (A):	19/38
Max. short circuit current (A) total:	57,00
AC grid voltage (V):	220, 230, 380, 400
AC grid frequency (Hz).:	50
Surge protection AC:	type 2
Surge protection DC:	type 2
Total number of string inputs:	3
Min. temperature ambient (°C):	-10
Max. input current DC (A) total:	45,00
Max. input current per MPPT (A).:	15/30
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	156,000
Manufacturer:	Sunwoda Energy
Brand:	Sunwoda Energy
Manufacturer item name:	SunESS Power All-in-One 15kWh*SW15KH3UT
Manufacturer part number: :	SunESS 15K + 15.0 storage

Weight without packaging (kg):	202,000
Height without packaging (mm):	1.505,00
Width without packaging (mm):	650,00
Length without packaging (mm):	250,00

Standard product warranty (yr):	12
Warranty provider:	Sunwoda Energy
