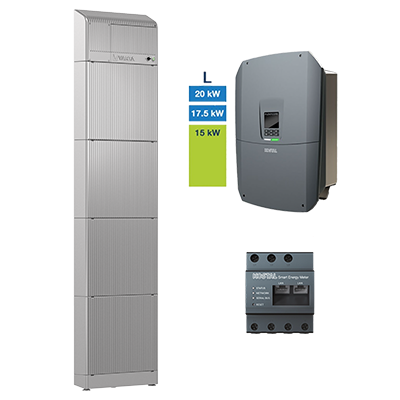

VARTA.wall 20 + Plenticore L G3

VARTA + Kostal

Art-Nr. 0159708

VARTA.wall 20 + Plenticore L G3

HV system, 15.0-20.0 kW, 20.0 kWh usable, 3-phase

SMART ENERGY METER G2 | 3-phase energy measurement to 63 A

Kostal

Art.-Nr. 0151118

SMART ENERGY METER G2

3-phase energy measurement to 63 A

Varta

Art.-Nr. 0154887

VARTA.wall storage module

HV storage module, 5.0 kWh usable

Varta

Art.-Nr. 0154888

VARTA.wall Master Unit + Base

BMS for HV storage system

PLENTICORE G3 – L | Hybrid inverter, 15.0-20.0 kW, 2+1 MPPT, 3-phase

Kostal

Art.-Nr. 0155067

PLENTICORE G3 – L

Hybrid inverter, 15.0-20.0 kW, 2+1 MPPT, 3-phase

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

The 3 PLENTICOINs required to activate the storage function must be ordered separately.

The country approvals of the components must be checked.

This combination gets things moving. The ultra-flexible Kostal Plenticore G3 series with the in-house PLENTICOIN currency and the ultra-flat VARTA.wall high-voltage storage system. For the inverters with the S, M and L device variants, PLENTICOINs can be used to activate 2 higher power classes, storage usage and the intelligent connection of the EV charger. At any time. This concept enables almost universal application freedom with reduced storage requirements. With a depth of just 100 mm, the VARTA.wall is probably the flattest storage system on the market. In stacked design with up to 4 modules on top of each other, it fits behind almost any door.

Product advantages:

• Activate power and functions as required using PLENTICOINs

• 30 A input current per MPPT

• Full backup with changeover device

• Certified storage safety according to VDE 2510-50

Product features System:

• AC base power: 15.0 kW

• AC power extension level 1: 17.5 kW

• AC power extension stage 1: 20.0 kW

• Number of MPPT: 2 + 1 (PV / Bat)

• AC connection: 3-phase

• Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

• Protection class: IP65

• Cooling: active

• Dimensions: 561 x 409 x 237 mm (H x W x D)

• Gewicht: 24.3 kg

Product features Storage:

• Battery capacity (usable): 20.0 kWh

• Storage type: High-voltage

• Nominal voltage: 403.2 V

• Extension time frame: 18 months

• System structure: 2 to 4 battery modules + BMS

• Cell chemistry: NCA

• Communication: CAN, RS485, Ethernet, WLAN

• Cooling: passive

• Protection class: IP55

• Dimensions: 2197 x 605 x 100 mm (H x W x D)

• Weight: BMS approx. 15.0 kg, storage 4 x 37.0 kg

• Warranty: 10 years

Activation via PLENTICOINs:

Plenticore G3 series:

Increase by one performance class (1 level) within the S / M / L appliance series -> 1 PLENTICOIN

Increase to maximum power (2 levels) within the S / M / L appliance series -> 1+1 PLENTICOIN

Activation of the storage function -> 3 PLENTICOINS

Activation of the convenience function for the Enector Wallbox -> 2 PLENTICOINS

Scope of delivery:

• 1 x Kostal Plenticore L G3 hybrid inverter (item 0155067)

• 1 x Kostal KSEM G2 Smart Meter (item 0151118)

• 1 x VARTA.wall BMS (item 0154888)

• 4 x VARTA.wall storage module (item 0154887)

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
AC nominal power (kW):	15,00
Max. generator power DC (kWp):	22,50
Arc Fault Circuit Interrupter:	no
Max. efficiency (%):	98,00
Max. input voltage DC (V):	1.000,00
Battery voltage:	High Voltage
Number of independent MPPT (pcs):	3
Usable capacity (kWh):	20,00
European efficiency (%):	97,00
Interfaces:	Dig. in, Dig. out, Ethernet, RS485, W-Lan
Max. AC power (kVA):	15,00
Display:	with display
Inverter type:	hybrid inverter
Commercial system:	no
Rapid shutdown:	no
Integrated DC switch:	yes
Offgrid usable:	no
Surge protection AC:	no
Integrated AC switch:	no
Start input voltage (V):	95
Shadow management:	yes
DC connector type:	SUNCLIX
Backup system full:	yes with supply
Max. output current (A):	32,00
Contact ripple control receiver:	yes
MPP max. voltage range input (V):	800,00
MPP min. voltage range input (V):	170,00
Backup system light:	no
Surge protection DC:	no
Contact for self-consumption optimization (e.g. for heat pump):	4
Decibel:	39
Max. short circuit current per MPPT (A):	42
Max. short circuit current (A) total:	126,00
Capacity extendable later:	no
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid voltage (V):	230, 400
AC grid frequency (Hz).:	50
Total number of string inputs:	3
Max. input current DC (A) total:	90,00
Max. input current per MPPT (A).:	30
Battery cell chemistry:	NCA

Intrastat country of origin:	Germany
Intrastat product number (HS-code):	85076000
UN No.:	3480
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	148,000
Brand:	Kostal, VARTA
Manufacturer:	VARTA + Kostal
Manufacturer item name:	VARTA.wall battery moduleSet Master-/Base UnitPLENTICORE L G3
Manufacturer part number: :	VARTA.wall 20 + Plenticore L G3

Weight without packaging (kg):

187,400
