Pylontech Force H2 6.7 + Sungrow SH5.0RT-20-V11

Pylontech + Sungrow

Art-Nr. 0159574

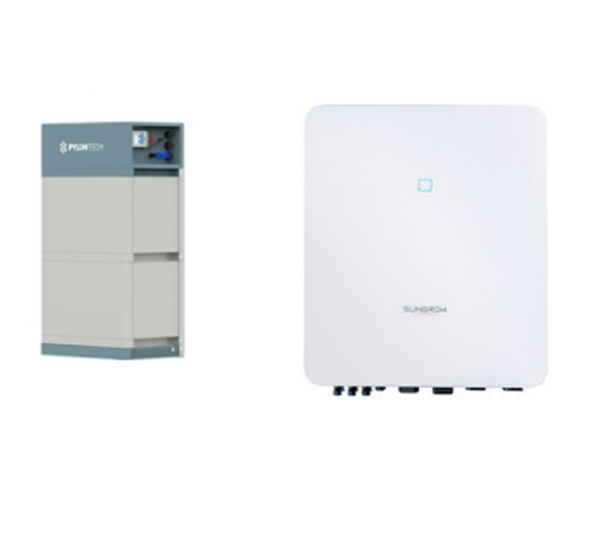

Pylontech Force H2 6.7 + Sungrow SH5.0RT-20-V11

HV storage system, 6,7 kWh usable, 3-phase

FORCE-H2 FH9637M, HV storage module | 3.37 kWh usable / 3.55 kWh total

Pylontech

Art.-Nr. 0132232

FORCE-H2 FH9637M, HV storage module

3.37 kWh usable / 3.55 kWh total

FORCE-H2 FC0500M-40S-V2 | HV storage controller + base

Pylontech

Art.-Nr. 0152523

FORCE-H2 FC0500M-40S-V2

HV storage controller + base

SH5.0RT-20-V11 | Hybrid inverter, 2 MPPT, 3-phase

Sungrow

Art.-Nr. 0154114

SH5.0RT-20-V11

Hybrid inverter, 2 MPPT, 3-phase

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

The powerful combination of the proven Sungrow hybrid inverters with the flexible Pylontech Force H1 storage systems creates the ideal conditions for all applications. With power classes from 5 to 10 kW, there's a suitable device for every home. By connecting up to five systems in parallel, applications in the small commercial sector are also conceivable. And with up to 23.6 kWh of usable storage capacity, you don't have to worry about power outages.

Product advantages:

• Powerful combination of well-known manufacturers

• Backup power operation via backup connection

• Integrated AC + DC surge protection type 2

• Storage capacity expandable up to 23.6 kWh

• Up to 5 systems in parallel operation

System product features:

• AC power: 5.0 kW

• Number of MPPTs: 2

• AC connection: 3-phase

• Communication: Wi-Fi, LAN, RS485, CAN, 4 x DI (FRE), 1 x DO

• Protection class: IP65

• Cooling: passive

• Weight: 27.0 kg

• Includes WiNet dongle and smart meter

Storage product features:

• Battery capacity (usable): 6.7 kWh

• Extension time window: 2 years

• Cell chemistry: LFP

• Nominal voltage: 192 V

• Protection class: IP55

• Dimensions: 815 x 450 x 296 mm (HxWxD)

• Weight: BCU 21.0 kg, 2 x storage units, each 38.0 kg

Conclusion:

Quick and easy installation, easy startup via smartphone, plus flexibly expandable storage – that's what a storage package should be.

Scope of delivery:

• 1 x Sungrow SH5.0RT-20-V11 Hybrid Inverter, including WiNet dongle and meter (item 0154114)

• 1 x Pylontech Force-H2 Battery Management System (item 0152523)

• 2 x Pylontech Force-H2 storage modules (item 0132232)

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Number of independent MPPT (pcs):	2
Max. AC power (kVA):	5,00
Max. efficiency (%):	98,00
AC nominal power (kW):	5,00
Max. input voltage DC (V):	1.000,00
European efficiency (%):	97,20
Max. generator power DC (kWp):	7,50
Battery voltage:	High Voltage
Protection degree:	IP55
Display:	w/o display
Usable capacity (kWh):	6,70
Backup system full:	yes
Amount connected phases:	3
Interfaces:	Ethernet, RS485, W-Lan
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
Integrated DC switch:	no
Max. temperature ambient (°C):	50
Start input voltage (V):	180
MPP min. voltage range input (V):	150,00
MPP max. voltage range input (V):	950,00
Max. short circuit current (A) total:	36,00
Capacity extendable later:	yes with time restriction
Decibel:	30
Max. output current (A):	7,60
Max. short circuit current per MPPT (A):	18,0
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid voltage (V):	220, 230, 380, 400
Total number of string inputs:	2
AC grid frequency (Hz).:	50
Surge protection AC:	type 2
Surge protection DC:	type 2
Max. input current DC (A) total:	27,00
Max. input current per MPPT (A).:	13,5
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	Pylontech + Sungrow
Brand:	Pylontech, Sungrow
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	71,000
Manufacturer item name:	SH5.0RT-20-V112*PT 96V FORCE-H2 FH9637M
Manufacturer part number: :	Pylontech Force H2 6.7 + Sungrow SH5.0RT-20-V11

Weight without packaging (kg):

109,500
