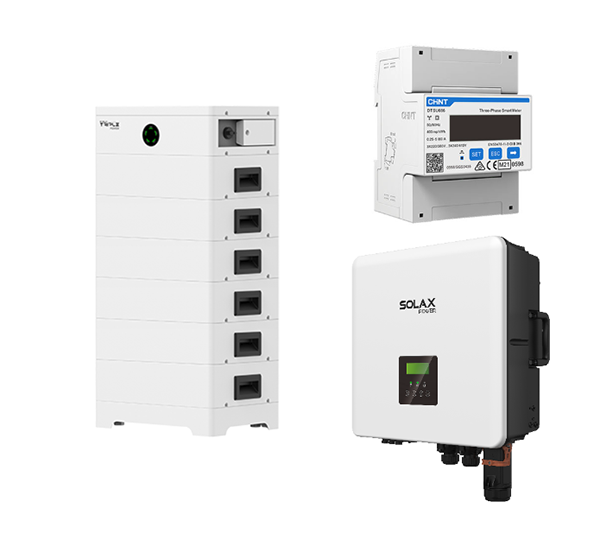

T-BAT-HS 15.0 + X3-Hybrid 10.0-P G4 PRO + Dongle

SolaX Power

Art-Nr. 0159563

T-BAT-HS 15.0 + X3-Hybrid 10.0-P G4 PRO + Dongle

HV storage system, 13.8 kWh usable, 3-ph

DTSU666-D Smart Meter | 3-phase, direct measurement, 80A

SolaX Power

Art.-Nr. 0128464

DTSU666-D Smart Meter

3-phase, direct measurement, 80A

Master Box MCS0800 + base | Controller for HV storage series SYS-HS

SolaX Power

Art.-Nr. 0155372

Master Box MCS0800 + base

Controller for HV storage series SYS-HS

T-BAT-SYS-HV-S2.5 | HV storage module, 2.3 kWh usable

SolaX Power

Art.-Nr. 0155103

T-BAT-SYS-HV-S2.5

HV storage module, 2.3 kWh usable

X3-Hybrid 10.0 G4 PRO + Dongle | Hybrid-WR, 3 MPPT, 3-phase

SolaX Power

Art.-Nr. 0158958

X3-Hybrid 10.0 G4 PRO + Dongle

Hybrid-WR, 3 MPPT, 3-phase

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

The WiFi/LAN dongle is now included in the scope of delivery of the X3 Hybrid.

With the new PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still approved. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HS storage series from Solax, there is a suitable set for every application.

Product advantages:

• Up to 3 independent MPPTs

• 20A input current per MPPT

• 2 separate battery ports

• Cascadable up to 13 battery modules

• Simplified COM ports with RJ45

System product features:

• AC power: 10.0 kW

• Feed-in phases: 3

• AC connection: 400 V

• Number of MPPTs: 3

• Max. DC input voltage: 1000 V

• Max. DC input current: 20A per MPPT

• DC surge protection: Type 2

• AC surge protection: Type 2

• Number of battery ports: 2

• Battery DC charging current: 25A each (using both ports), 30A (using one port), 50A (parallel operation)

• Communication: Wi-Fi, LAN

• Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapter Box G2, Wallbox, Datahub, DI/DO

• Protection class: IP66

• Cooling: passive

• Dimensions: approx. 503 x 503 x 199 mm (W x H x D)

• Weight: 38.0 kg

• Wi-Fi/LAN dongle included

Storage product features:

• Battery capacity (usable): 13.8 kWh

• Storage type: High-voltage

• Nominal voltage: 307.2 V

• Expansion time window: unlimited

• Number of storage modules in one unit: 2 to 13 (Solax Series Box required for 9 or more units)

• Cell chemistry: LFP

• Communication: RS485 / CAN

• Protection class: IP65

• Dimensions: 1048 x 510 x 365 mm (H x W x D)

• Weight: Battery 28.0 kg each, BMS + base 21.0 kg

Conclusion:

Ready for the future Statement from Solax. Practical and well-thought-out features of the new PRO hybrids, plus the HS storage units with plenty of punch.

Scope of delivery:

• 1 x Solax X3-Hybrid 10.0-P G4 PRO (item 0158958)

• 1 x Solax Meter DTSU666-D (item 0128464)

• 1 x Solax MCS0800 BCU + Base (item 0155372)

• 6 x Solax HV-S 2.5 storage modules (item 0155103)

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Protection degree:	IP65
Max. efficiency (%):	98,00
Max. input voltage DC (V):	1.000,00
AC nominal power (kW):	10,00
European efficiency (%):	97,70
Battery voltage:	High Voltage
Usable capacity (kWh):	13,80
Number of independent MPPT (pcs):	3
Max. AC power (kVA):	11,00
Amount connected phases:	3
Interfaces:	RS485
Max. generator power DC (kWp):	20,00
Display:	with display
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
Start input voltage (V):	120
Max. short circuit current per MPPT (A):	25
Max. output current (A):	13,40
MPP max. voltage range input (V):	950,00
MPP min. voltage range input (V):	110,00
Max. temperature ambient (°C):	53
Max. short circuit current (A) total:	75,00
Max. discharging power (kW):	9,20
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	220, 230, 380, 400
Surge protection AC:	type 2
Surge protection DC:	type 2
Total number of string inputs:	3
Max. input current DC (A) total:	60,00
Max. nominal charging power (kW):	9,20
Max. input current per MPPT (A).:	20
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	SolaX Power
Brand:	SolaX Power
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	168,000
Manufacturer item name:	T-BAT-HS 15.0X3-HYB-10.0-P G4 PRODTSU666-D
Manufacturer part number: :	T-BAT-HS 15.0 + X3-Hybrid 10.0-P G4 PRO + Dongle

Weight without packaging (kg):

216,710

Warranty provider:

SolaX Power
