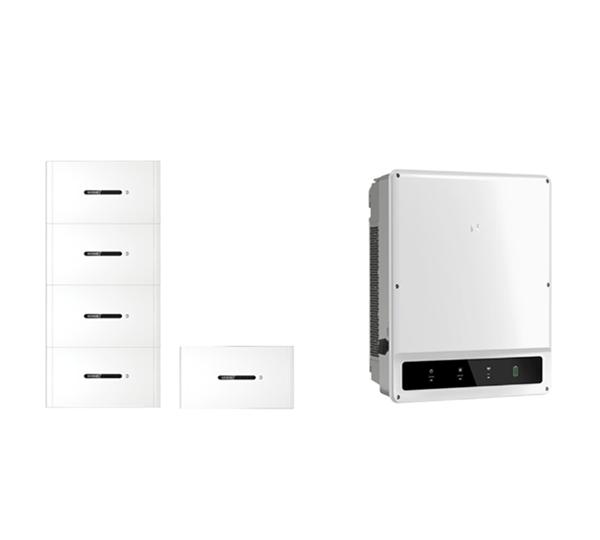

Lynx D25.0-10 + GW20K-ET

Goodwe

Art-Nr. 0159419

Lynx D25.0-10 + GW20K-ET

HV storage system, 25.0 kWh usable, 3-phase

Lynx D 5.0-10 | HV storage, 5.0 kWh usable, Version -08

Goodwe

Art.-Nr. 0158717

Lynx D 5.0-10

HV storage, 5.0 kWh usable, Version -08

Goodwe

Art.-Nr. 0158718

Stand for Lynx D 5.0-10

Base for stand mounting

GW20K-ET (SPD II/WIFI/3P-METER) | Hybrid inverter, 3-phase

Goodwe

Art.-Nr. 0159119

GW20K-ET (SPD II/WIFI/3P-METER)

Hybrid inverter, 3-phase

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

This set contains the components for floor mounting the storage unit. If required, this can be replaced with the wall mounting kit in the same quantity.

A maximum of 4 storage modules can be stacked on top of each other. For > 4 modules, installation in two separate towers is required.

The mid-range power classes of the Goodwe ET Hybrid series, from 15 to 29.9 kW, are a real pleasure to use with the new Lynx D storage system. Quick and easy installation or retrofitting is possible thanks to the BMS integrated into the module. With up to 8 batteries, 40.0 kWh of usable capacity is easily achievable. Depending on the power class of the ET Hybrid, this can also be achieved at each of the 2 storage connections. These boast 17 amps per string connection, 38 amps per MPP tracker, and 50 amps of charging current per battery input. They also feature a powerful backup UPS function with a switching time of < 10 ms. Goodwe even offers peak shaving as an option. The application range thus extends from residential to small commercial systems.

Product advantages:

• Emergency power with UPS function < 10 ms

• 38 A input current per MPPT

• Unlimited expansion thanks to integrated BMS

• Up to 8 storage elements in the system (40.0 kWh)

• Certified battery safety according to VDE 2510-50

System product features:

• AC power: 20 kW

• Number of MPPTs: 2

• AC connection: 3-phase

• Storage connections: 1

• Communication: WiFi, RS485

• Protection class: IP66

• Cooling: active

• Dimensions: 660 x 520 x 220 mm (HxWxD)

• Weight: 48.0 kg

• Energy meter and WiFi LAN kit included with inverter

Storage product features:

• Battery capacity (usable): 25.0 kWh

• Expansion time window: unlimited

• System configuration: 1 to 8 units

• Cell chemistry: LFP

• Nominal voltage: 320 - 480 V

• Communication: CAN

• Cooling: Passive

• Protection class: IP66

• Installation: Floor (wall mounting optional)

• Dimensions: 420 + 1560 x 700 x 170 mm (H x W x D)

• Weight: 52.0 kg per module

• Warranty: 10 years

Conclusion:

The new, powerful combination from Goodwe. Installation is a pleasure.

Scope of delivery:

• 1 x Goodwe GW20K-ET hybrid inverter, including meter + Wi-Fi LAN kit (item 0159119)

• 5 x Goodwe Lynx D 5.0-10 storage modules (item 0158717)

• 2 x Goodwe Lynx D stand (item 0158718)

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Protection degree:	IP66
Number of independent MPPT (pcs):	2
Max. AC power (kVA):	22,00
AC nominal power (kW):	20,00
Max. generator power DC (kWp):	30,00
Max. efficiency (%):	98,00
European efficiency (%):	97,50
Battery voltage:	High Voltage
Display:	w/o display
Amount connected phases:	3
Interfaces:	RS485
Usable capacity (kWh):	25,00
Inverter type:	hybrid inverter
Integrated DC switch:	yes
Max. short circuit current per MPPT (A):	38
Max. output current (A):	29,00
MPP min. voltage range input (V):	200,00
MPP max. voltage range input (V):	850,00
Max. input voltage DC (V):	100,00
Max. temperature ambient (°C):	53
Max. short circuit current (A) total:	76,00
Decibel:	45
Max. discharging power (kW):	20,00
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	380, 400
Total number of string inputs:	4
Surge protection DC:	type 2
Max. input current DC (A) total:	60,00
Surge protection AC:	type 3
Max. nominal charging power (kW):	20,00
Max. input current per MPPT (A).:	30
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	GoodWe
Manufacturer item name:	LX D25.0-10*GW20K-ET
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	313,400
Brand:	GoodWe
Compatible battery manufacturer:	Goodwe
Manufacturer part number: :	Lynx D25.0-10 + GW20K-ET

Weight without packaging (kg):

313,400

Warranty provider:

GoodWe
