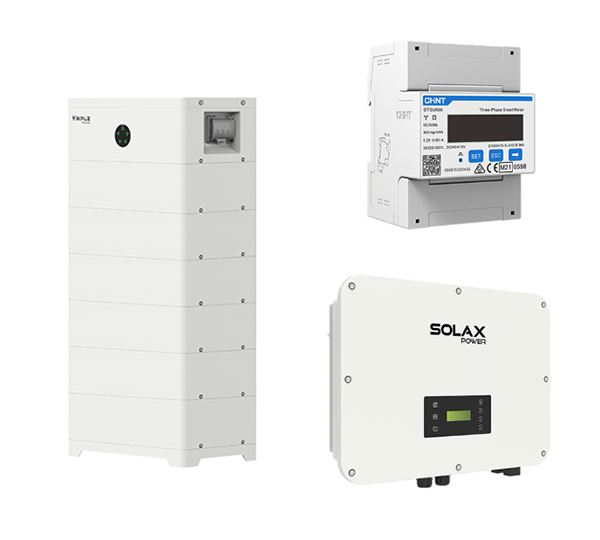

T-BAT HS 30.6 + X3-ULTRA-30K

SolaX Power

Art-Nr. 0159304

T-BAT HS 30.6 + X3-ULTRA-30K

HV storage system, 27.6 kWh usable, 3-phase

T-BAT SYS HV-S 5.1 | HV storage module, 4.5 kWh usable

SolaX Power

Art.-Nr. 0159246

T-BAT SYS HV-S 5.1

HV storage module, 4.5 kWh usable

T-BAT BMS TBSM-S51-8 + Base | Controller for HV storage series SYS-HS 5.1

SolaX Power

Art.-Nr. 0159247

T-BAT BMS TBSM-S51-8 + Base

Controller for HV storage series SYS-HS 5.1

DTSU666-D Smart Meter | 3-phase, direct measurement, 80A

SolaX Power

Art.-Nr. 0128464

DTSU666-D Smart Meter

3-phase, direct measurement, 80A

X3-ULTRA-30K | Hybrid IV, 3-phase, 3 MPPT, AFCI, with display

SolaX Power

Art.-Nr. 0155101

X3-ULTRA-30K

Hybrid IV, 3-phase, 3 MPPT, AFCI, with display

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

For XL home systems or XS commercial systems, Solax offers the X3-Ultra series. With power ratings from 15 to 30 kW, high DC input currents, and two independent battery connections, these high-voltage hybrids are a real statement. Integrated surge protection, AFCI arc detection, and interfaces for radio ripple control receivers and the like leave little to be desired. Like the "small" X3 series, the Ultras can also be operated as true off-grid systems with a generator. The new HV-S 5.1 high-voltage storage series with up to 59.8 kWh of usable capacity is also available as a perfect complement. The two separate storage connections on the Ultra allow for up to 119.6 kWh.

Product advantages:

• Ideal for large residential and small commercial applications

• Emergency power with UPS function < 10 ms

• High input current per MPPT

• 2 independent battery connections

• Integrated AFCI arc detection

• Backup outputs can be cascaded

System product features:

• AC power: 30.0 kW

• Number of MPPTs: 3

• DC input current: 36 A per MPPT

• Battery connections: 2

• Max. storage charging current: 30 A each

• AC connection: 3-phase

• Communication: Wi-Fi, LAN (optional), RS485

• Interfaces: 5 x DI (FRE), 2 x DO

• Protection class: IP65

• Cooling: active

• Dimensions: 696 x 526 x 240 mm (W x H x D)

• Weight: 47.0 kg

Storage product features:

• Battery capacity (usable): 27.6 kWh

• Storage type: High-voltage

• Nominal voltage: 307.2 V

• Expansion time frame: unlimited

• Number of storage modules in one unit: 3 to 13

(from the 8th storage unit onwards, two towers can be set up with the Series Box)

• Cell chemistry: LFP

• Communication: RS485

• Cooling: passive

• Protection class: IP66

• Dimensions: 600 x 376 x 1293 mm (L x W x H)

• Weight: BMS + base 18.5 kg, per storage module 46.0 kg

Conclusion:

If you simply need something bigger – no problem with the Solax Ultra Hybrids including HV-S5.1 storage units.

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Protection degree:	IP66
Max. efficiency (%):	98,00
Max. input voltage DC (V):	1.000,00
European efficiency (%):	97,70
Battery voltage:	High Voltage
Number of independent MPPT (pcs):	3
AC nominal power (kW):	30,00
Max. generator power DC (kWp):	60,00
Amount connected phases:	3
Interfaces:	RS485
Max. AC power (kVA):	30,00
Usable capacity (kWh):	27,60
Display:	with display
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
Start input voltage (V):	200
Max. short circuit current per MPPT (A):	45
MPP min. voltage range input (V):	160,00
MPP max. voltage range input (V):	950,00
Max. temperature ambient (°C):	53
Max. short circuit current (A) total:	135,00
Max. output current (A):	43,50
Max. discharging power (kW):	18,40
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	230, 400
Surge protection AC:	type 2
Surge protection DC:	type 2
Total number of string inputs:	6
Max. input current DC (A) total:	108,00
Max. nominal charging power (kW):	18,40
Max. input current per MPPT (A).:	36
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	SolaX Power
Brand:	SolaX Power
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	276,000
Manufacturer item name:	T-HS30.7TBMS-S51DTSU666-D*X3-ULTRA-30K
Manufacturer part number: :	T-BAT HS 30.6 + X3-ULTRA-30K

Weight without packaging (kg):

342,210

Warranty provider:

SolaX Power
