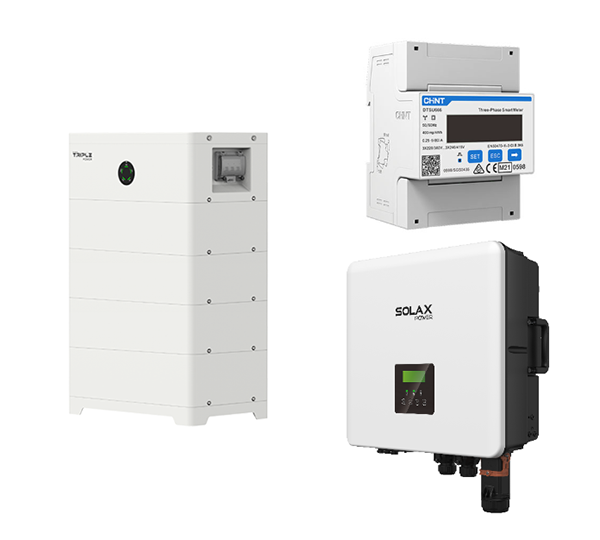

T-BAT HS 20.4 + X3-Hybrid 12.0 G4 PRO + Dongle

SolaX Power

Art-Nr. 0159296

T-BAT HS 20.4 + X3-Hybrid 12.0 G4 PRO + Dongle

HV storage system, 18.3 kWh usable, 3-phase

T-BAT SYS HV-S 5.1 | HV storage module, 4.5 kWh usable

SolaX Power

Art.-Nr. 0159246

T-BAT SYS HV-S 5.1

HV storage module, 4.5 kWh usable

T-BAT BMS TBSM-S51-8 + Base | Controller for HV storage series SYS-HS 5.1

SolaX Power

Art.-Nr. 0159247

T-BAT BMS TBSM-S51-8 + Base

Controller for HV storage series SYS-HS 5.1

DTSU666-D Smart Meter | 3-phase, direct measurement, 80A

SolaX Power

Art.-Nr. 0128464

DTSU666-D Smart Meter

3-phase, direct measurement, 80A

X3-Hybrid 12.0 G4 PRO + Dongle | Hybrid-WR, 3 MPPT, 3-phase

SolaX Power

Art.-Nr. 0158959

X3-Hybrid 12.0 G4 PRO + Dongle

Hybrid-WR, 3 MPPT, 3-phase

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

The WiFi/LAN dongle is now included in the scope of delivery of the X3-Hybrid Pro.

With the PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still permitted. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HV-S 5.1 storage series from Solax, there is a suitable set for every application.

Product advantages:

• Up to 3 independent MPPTs

• 20A input current per MPPT

• Intelligent AFCI arc detection

• 2 separate battery ports

• Up to 5 systems can be cascaded

• Up to 13 battery modules can be cascaded

System product features:

• AC power: 12.0 kW

• AC connection: 400V, 3-phase

• Number of MPPTs: 3

• DC input current: 20A per MPPT

• MPPT voltage range: 110 – 950 V

• Number of battery ports: 2

• DC charging current per battery: 25A each (using both ports), 30A (using one port), 50A (parallel operation)

• Communication: Wi-Fi, LAN

• Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapterbox G2, Wallbox, Datahub DI/DO

• Protection class: IP66

• Cooling: active

• Dimensions: approx. 503 x 503 x 199 mm (W x H x D)

• Weight: 38.0 kg

• Wi-Fi/LAN dongle included

Storage product features:

• Battery capacity (usable): 18.3 kWh

• Storage type: high-voltage

• Nominal voltage: 204.8 V

• Expansion time window: unlimited

• Number of storage modules in one unit: 3 to 13

(from the 8th storage unit, two towers can be set up with the Series Box)

• Cell chemistry: LFP

• Communication: RS485

• Cooling: passive

• Protection class: IP66

• Dimensions: 600 x 376 x 957 mm (L x W x H)

• Weight: BMS + base 18.5 kg, 46.0 kg per storage module

Conclusion:

Solax's ready-for-the-future statement. Practical and well-thought-out features of the new PRO hybrids, plus the HV-S 5.1 storage units with plenty of punch.

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Protection degree:	IP66
Max. AC power (kVA):	13,20
AC nominal power (kW):	12,00
Max. efficiency (%):	98,00
Max. input voltage DC (V):	1.000,00
Max. generator power DC (kWp):	24,00
European efficiency (%):	97,70
Battery voltage:	High Voltage
Number of independent MPPT (pcs):	3
Amount connected phases:	3
Interfaces:	RS485
Display:	with display
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
Start input voltage (V):	120
Max. short circuit current per MPPT (A):	25
Max. output current (A):	20,00
MPP max. voltage range input (V):	950,00
MPP min. voltage range input (V):	110,00
Usable capacity (kWh):	18,30
Max. temperature ambient (°C):	53
Max. short circuit current (A) total:	75,00
Max. discharging power (kW):	12,30
Cos phi.:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	220, 230, 380, 400
Surge protection AC:	type 2
Surge protection DC:	type 2
Total number of string inputs:	3
Max. input current DC (A) total:	60,00
Max. nominal charging power (kW):	12,30
Max. input current per MPPT (A).:	20
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	SolaX Power
Brand:	SolaX Power
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	184,000
Manufacturer item name:	T-HS20.4TBMS-S51DTSU666-D*X3-HYB-12.0-P
Manufacturer part number: :	T-BAT HS 20.4 + X3-Hybrid 12.0 G4 PRO + Dongle

Weight without packaging (kg):

241,210

Warranty provider:

SolaX Power
