T-BAT HS 12.5 + X3-Hybrid 15.0-D G4.2 + dongle
Product information
ATTENTION:
UN 3480 lithium-ion batteries, 9, (E)
Transport category 2
the Wifi/LAN dongle is now included in the scope of delivery of the X3 Hybrid
In this storage package, we combine the proven X3 hybrids from Solax with power classes from 5 to 15 kW and the new HV-S 2.5 storage series. This can be cascaded with up to 13 storage modules per tower to a usable 29.9 kWh. Fast, cable-free stacking without time limits for expansion creates the best conditions and maximum flexibility. Also ideal for special applications as a genuine off-grid system with generator connection.
Product advantages:
• Reliable compatibility thanks to uniform manufacturer
• Emergency power with UPS function < 10ms
• High input current per MPPT
• Up to 10 systems can be cascaded
• Proven, ultra-flat stacking design
• Cascadable up to 13 battery modules
Product features System:
• AC power: 15.0 kW
• Number of MPPT: 2
• DC input current: 28A MPPT 1 + 16A MPPT 2
• AC connection: 3-phase
• Communication: Wifi, LAN, RS485
• Protection class: IP65
• Cooling: active
• Dimensions: 503 x 503 x 199 mm (W x H x D)
• Weight: 30.0 kg
• Wifi/LAN dongle included in the scope of delivery
Product features Storage:
• Battery capacity (usable): 11.5 kWh
• Time window extension: unlimited
• Cascadable: 2 to 13 battery modules (Solax Series Box required for 9 units or more)
• Cell chemistry: LFP
• Nominal voltage: 256.0 V
• Protection class: IP65
• Dimensions: 910 x 510 x 365 mm (H x W x D)
• Weight: Battery 28.0 kg each, BMS 10.0 kg
Conclusion:
With a wide performance spectrum and new super-flexible storage sizes, there is a suitable package for every application.

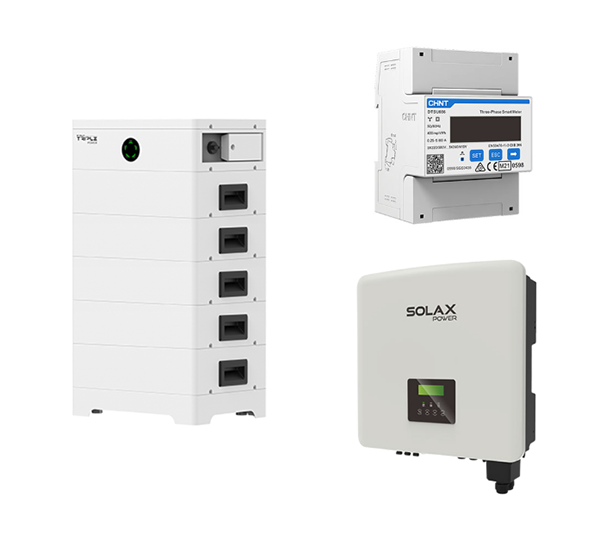

Scope of delivery:
• 1 x Solax X3-Hybrid 15.0-D G4.2 (item 0157204)
• 1 x Solax Meter DTSU666-D (item 0128464)
• 1 x Solax MCS0800 BCU + Sockel (item 0155372)
• 5 x Solax HV-S 2.5 storage module (item 0155103)
Technical details
Storage Type: | High Voltage |
AC nominal power (kVA): | 15,00 |
Amount connected phases: | 3 |
Usable capacity (kWh): | 11,50 |
Dangerous goods UNNr: | 3480 |
Intrastat Product number: | 85076000 |
Manufacturer: | SolaX Power |
Manufacturer Item Name: | T-BAT-SYS-HV-S2.5*MCS0800*X3-HYBRID-15.0-D |
Manufacturer part number: : | T-BAT HS 12.5 + X3-Hybrid 15.0-D G4.2 + dongle |
Weight (kg): | 180,710 |
Warranter: | SolaX Power |
Downloads
Master Box MCS0800 + base
T-BAT-SYS-HV-S2.5
DTSU666-D Smart Meter
X3-Hybrid 15.0-D G4.2 + dongle
T-BAT-SYS-HV-S2.5
DTSU666-D Smart Meter
X3-Hybrid 15.0-D G4.2 + dongle
