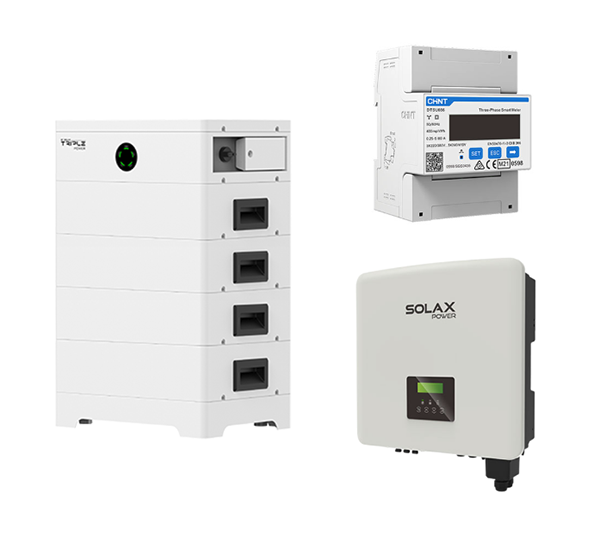

T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2

SolaX Power

Art-Nr. 0155720

T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2

HV storage system, 9.2 kWh usable, 3-phase

Master Box MCS0800 + base | Controller for HV storage series SYS-HS

SolaX Power

Art.-Nr. 0155372

Master Box MCS0800 + base

Controller for HV storage series SYS-HS

T-BAT-SYS-HV-S2.5 | HV storage module, 2.3 kWh usable

SolaX Power

Art.-Nr. 0155103

T-BAT-SYS-HV-S2.5

HV storage module, 2.3 kWh usable

DTSU666-D Smart Meter | 3-phase, direct measurement, 80A

SolaX Power

Art.-Nr. 0128464

DTSU666-D Smart Meter

3-phase, direct measurement, 80A

X3-HYBRID-6.0-D G4.2 | Solax 3-phase inverter with DC switch

SolaX Power

Art.-Nr. 0151785

X3-HYBRID-6.0-D G4.2

Solax 3-phase inverter with DC switch

Product information

CAUTION:

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

In this storage package we combine the proven X3 hybrids from Solax with performance classes from 5 to 15 kW and the new HV-S 2.5 storage series. This can be cascaded per tower with up to 13 storage modules to a usable 29.9 kWh. Fast, wireless stacking design with no time limit for expansion creates the best conditions and maximum flexibility. Also ideal for special applications as a true off-grid system with a generator connection.

Product advantages:

• Secure compatibility thanks to a uniform manufacturer

• Emergency power with UPS function < 10ms

• High input current per MPPT

• Up to 10 systems can be cascaded

• Proven, ultra-flat stacking design

• Cascadable up to 13 battery modules

• Updates and diagnostics via the inverter

Product features system:

• AC power: 6.0 kW

• Number of MPPT: 2

• DC input current: 16A per MPPT

• AC connection: 3-phase

• Communication: Wifi, LAN (opt.), RS485

• Protection class: IP65

• Cooling: passive

• Dimensions: 503 x 503 x 199 mm (W x H x D)

• Weight: 30.0 kg

Product features memory:

• Battery capacity (usable): 9.2 kWh

• Time window extension: unlimited

• Cascadable: 2 to 13 battery modules (9 units or more become Solax Series

box required)

• Cell chemistry: LFP

• Rated voltage: 204.8V

• Protection class: IP65

• Dimensions: 773 x 510 x 365 mm (HxWxD)

• Weight: Battery 28.0 kg each, BMS 10.0 kg

Conclusion:

With a wide range of performance and new, super-flexible memory sizes, there is the right package for every application.

view more Show less

Technical details

Topology:	transformerless
Feed-in phases:	3
Number of independent MPPT (pcs):	2
Protection degree:	IP65
Max. efficiency (%):	98,00
Max. number of string inputs (pcs):	2
Cell chemistry:	LFP
Max. input current DC (A) total:	32,00
Max. input voltage DC (V):	1.000,00
AC nominal power (kW):	6,00
Max. generator power DC (kWp):	12,00
European efficiency (%):	97,70
Battery voltage:	High Voltage
Max. AC power (kVA):	6,60
Amount connected phases:	3
Schnittstellen:	RS485, W-Lan
Usable capacity (kWh):	9,20
Display:	with display
Inverter type:	hybrid inverter, string inverter
Commercial system:	no
AC grid voltage (V):	220V, 230V, 240V, 380V, 400V, 415V
Cos phi:	+/- 0,8, +/- 0,9, 1
AC grid frequency (Hz):	50/60 Hz
Max. short circuit current per MPPT (A):	20
Start input voltage (V):	200
MPP min. voltage range input (V):	180,00
MPP max. voltage range input (V):	950,00
Max. temperature ambient (°C):	53
Max. short circuit current (A) total:	40,00
Max. nominal charging power (kW):	6,10
Max. discharging power (kW):	6,10
Max. output current (A):	9,70

Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	SolaX Power
Manufacturer item name:	T-BAT-SYS-HV-S2.5MCS0800X3-HYBRID-6.0-D
Brand:	SolaX Power
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Dangerous goods Weight (net) (kg):	112,000
Manufacturer part number: :	T-BAT HS 10.0 + X3-Hybrid 6.0 D G4.2
