Extension Battery Cabinet for CSS-OP
Product information
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Currently certified for DE, AT, IT, NL, ES, PL, CZ.
Certification for UK expected end of Q4 2025.
The manufacturer's specifications for installation, assembly and installation location must be observed.
Suitable lifting and transportation equipment must be provided by the customer and the accessibility of the transport routes must be checked.
In the SolarEdge CSS-OP system, up to 2 storage cabinets, each with a capacity of 102.4 kWh, can be connected to the PCS050 inverter. Parallel connection enables systems up to 1 MWh. A comprehensive monitoring system, LFP cell technology and a multiple sensor and fire protection concept ensure safety. The ideal system module for any size of commercial application. Seamless integration into the proven SolarEdge communication is a matter of course.
Product advantages:
• Best networking through uniform manufacturer
• Visualization on the SolarEdge monitoring platform
• Maximum flexibility thanks to comprehensive scalability
• Integrated fire protection system
Product features:
• Capacity (usable): 97.28 kWh
• Storage type: High-voltage
• Max. charging rate: 0.5 C
• Cell chemistry: LFP
• Communication: RS485
• Installation location: Indoor / Outdoor
• Protection class: IP54
• Cooling: Air conditioning
• Dimensions: 1100 x 2380 x 930 mm (W x H x D)
• Total weight: 1433.0 kg

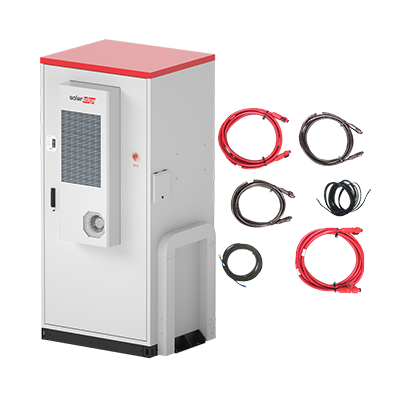

Included items:
• 1 x SolarEdge CSS-OD Battery Cabinet (item 0156955)
• 1 x SolarEdge CSS-OD Cable-Kit für 2. Cabinet (item 0159312)
Technical details
Protection degree: | IP54 |
Usable capacity (kWh): | 92,16 |
Max. temperature ambient (°C): | 45 |
Max. C-rate: | 0,50 |
Min. temperature ambient (°C): | -20 |
Battery voltage.: | High Voltage |
Battery cell chemistry: | LFP |
Intrastat country of origin: | China |
Manufacturer: | SolarEdge |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Brand: | SolarEdge |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Dangerous goods Weight (net) (kg): | 880,000 |
Manufacturer.: | SolarEdge |
Manufacturer item name: | CSS-OU-O1-20-CA-B01-01*Cabling extension kit |
Manufacturer part number: : | Extension Battery Cabinet for CSS-OP |
Height without packaging (mm): | 2.380,00 |
Width without packaging (mm): | 1.100,00 |
Length without packaging (mm): | 1.100,00 |
Standard product warranty (yr): | 10 |
Warranty provider: | SolarEdge |
Warranty provider.: | SolarEdge |
