BYD
Art-Nr. 0158908

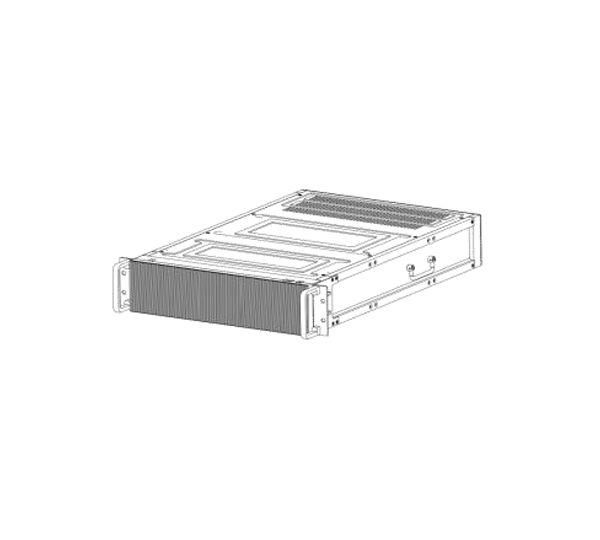

Battery-Max Lite storage module
HV storage module, 7.5 kWh usable
Manufacturer item number: 14583501-00
Product information
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
The extension is only possible within the first year in accordance with the manufacturer's specifications.
Check the number of free storage module slots in the existing system before ordering. A maximum of 12 batteries are possible per cabinet.
Make sure you have suitable aids for transport and installation in the rack.
The Max Lite high-voltage storage system is the large and flexible power package from BYD. Thanks to modular storage compartments, each with a usable capacity of 7.5 kWh, it can be equipped as required. This means that 30 to 90 kWh are possible per cabinet. In parallel connection with 32 units even 2.88 MWh. With a suitable inverter, it is designed for use in the C&I segment. Even backup and off-grid applications are possible.
Product features:
- Battery capacity (usable): 7.5 kWh
- Extension time window: unlimited
- Cell chemistry: LFP
- Nominal voltage: 76.8 V
- Cooling: active
- Weight: 75.0 kg
Technical details
Cell chemistry: | LFP |
Battery voltage: | High Voltage |
Usable capacity (kWh): | 7,50 |
Protection degree: | IP20 |
Max. temperature ambient (°C): | 50 |
Capacity extendable later: | yes without restriction |
Nominal voltage DC (V): | 76,80 |
Nominal Capacity (Ah): | 100,00 |
Max. output current charging (A): | 100,00 |
Max. output current discharging (A): | 100,00 |
Min. temperature ambient (°C): | -20 |
Battery cell chemistry: | LFP |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Manufacturer: | BYD |
Manufacturer item name: | MAXLITE Module 7.5 kWh |
Supplier item: | 14583501-00 |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Dangerous goods Weight (net) (kg): | 75,000 |
Brand: | BYD |
Compatible Inverter manufacturer: | AXITEC, SMA |
Manufacturer part number: : | Battery-Max Lite storage module |
Pack. material: | cardboard box |
Pal. weight (kg): | 800,00 |
Amount per Pallet: | 10 |
Pal. dim. LxBxH (mm): | 1250x1320x980 |
Weight without packaging (kg): | 75,000 |
Height without packaging (mm): | 130,00 |
Length without packaging (mm): | 671,00 |
Width without packaging (mm): | 531,00 |
Product warranty (yr): | 10 |
Standard product warranty (yr): | 10 |
Warranty provider: | BYD |
Warranty provider.: | BYD |
