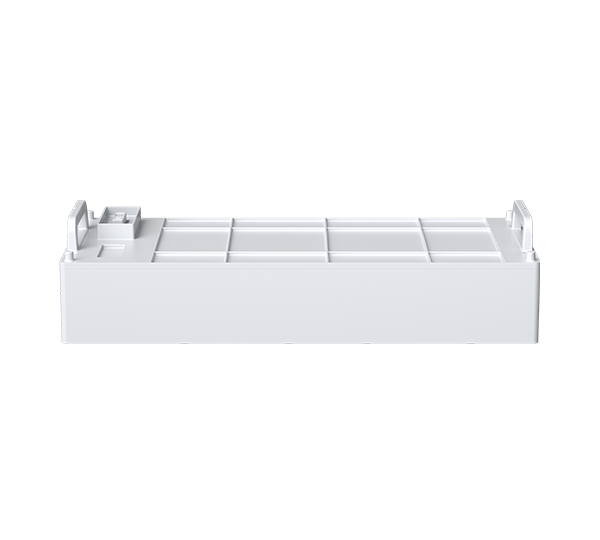

Battery-Box HVB 2,97 kWh
Product information
CAUTION:
UN 3480 Lithium-ion batteries, 9, (E)
Transport category 2
Please check compatibility with your system. Retrofitting storage modules requires special preparations and must be carried out in accordance with the manufacturer's instructions.
The successful HVS and HVM series from BYD have now been joined by the HVB high-voltage storage system. It shines with all the virtues of its predecessors and a capacity range of 5.9 to 29.6 kWh per unit. The LFP cells, developed in-house and proven a million times over, also enable smaller system dimensions. In the maximum expansion stage, the tower is only 1.33 metres high. A maximum total capacity of 89.07 kWh can be cascaded three times. Also ideal for applications in the small commercial sector.
Product advantages:
- System can be expanded at any time
- Wireless stacking concept
- Up to 10 storage modules per tower
- Max. 3 units scalable in parallel up to 89.07 kWh
Product features Storage:
- Battery capacity (usable): 2.97 kWh
- Expansion time window: unlimited
- Structure per unit: 2 to 10 battery modules
- Cell chemistry: LFP
- Nominal voltage: 51.2 V
- Protection class: IP55
- Dimensions: 106 x 610 x 282 mm (HxWxD)
- Weight: 27.3 kg
Technical details
Battery voltage: | High Voltage |
Protection degree: | IP55 |
Max. temperature ambient (°C): | 50 |
Nominal voltage DC (V): | 51,20 |
Max. output current charging (A): | 50,00 |
Min. temperature ambient (°C): | -20 |
Battery voltage.: | High Voltage |
Usable capacity (kWh): | 2,97 |
Nominal Capacity (Ah): | 58,00 |
Battery cell chemistry: | LFP |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85076000 |
UN No.: | 3480 |
Manufacturer: | BYD |
Classification code: | M4 |
Dangerous goods class: | 9 |
Dangerous goods transportation category: | 2 |
Dangerous goods description: | LITHIUM ION BATTERIES |
Tunnel restriction code: | (E) |
Dangerous goods packaging type: | 4G |
Brand: | BYD |
Compatible Inverter manufacturer: | KACO new energy, Kostal |
Manufacturer.: | BYD |
Manufacturer item name: | BATTERY-BOX HVB (2,97 kWh) |
Supplier item: | 17845018-00 |
Dangerous goods Weight (net) (kg): | 27,300 |
Manufacturer part number: : | Battery-Box HVB 2,97 kWh |
Pack. material: | cardboard box |
Amount Pal. p. Cont.: | 20 |
Amount per Pallet: | 28 |
Amount p. Cont.: | 560 |
Pal. weight (kg): | 720,00 |
Pal. dim. LxBxH (mm): | 1140x1140x1614 |
Weight without packaging (kg): | 27,300 |
Height without packaging (mm): | 106,00 |
Length without packaging (mm): | 610,00 |
Width without packaging (mm): | 282,00 |
Standard product warranty (yr): | 15 |
Warranty provider: | BYD |
Warranty provider.: | BYD |
