BYD HVS 12.8 + VERTO PLUS 17.5

BYD + Fronius

Art-Nr. 0160036

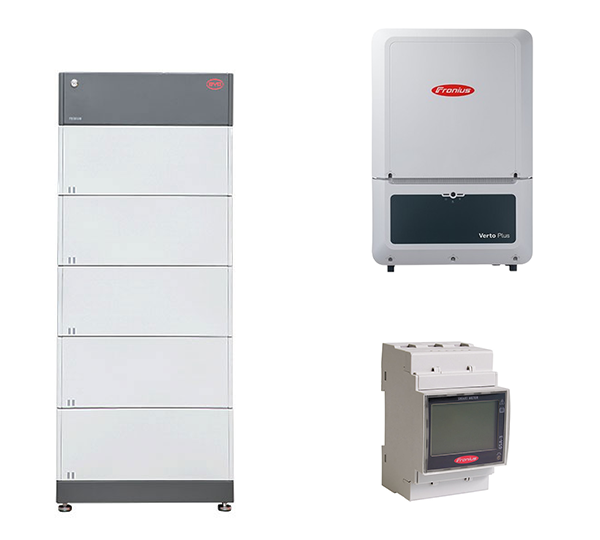

BYD HVS 12.8 + VERTO PLUS 17.5

HV storage system, 12.8 kWh, 17.5 kW, 3-phase

SMART METER TS 65A-3 | bidirectional counter

Fronius

Art.-Nr. 0151650

SMART METER TS 65A-3

bidirectional counter

Battery-Box Premium HVS 2,56 kWh | HV storage module, 2.56 kWh usable

BYD

Art.-Nr. 0131385

Battery-Box Premium HVS 2,56 kWh

HV storage module, 2.56 kWh usable

Verto Plus 17.5 | Hybrid-IV, 3 MPPT, 3-phasig

Fronius

Art.-Nr. 0159333

Verto Plus 17.5

Hybrid-IV, 3 MPPT, 3-phasig

B-Box Premium HV BCU + Base 2.0 | Controller for HV storage series HVM + HVS

BYD

Art.-Nr. 0159471

B-Box Premium HV BCU + Base 2.0

Controller for HV storage series HVM + HVS

Product information

CAUTION:

UN 3480 Lithium ion batteries / Transport hazard class 9 / (E) Packing Group II

As with the Fronius GEN24 devices, the ‘plus’ makes all the difference in the new Verto series. The Verto Plus hybrid inverters are already equipped with a powerful high-voltage storage connection ex works. With 15 to 33 kW, they are the ideal system modules in the small-commercial segment. The proven complete communication equipment is complemented by AC and DC-side overvoltage protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe. In this combination with a veteran of the PV storage world - the BYD HVS system. Proven, reliable and indefinitely expandable. Now even faster installation thanks to the new BCU 2.0.

Product advantages:

- 28 A input current per MPPT / string

- 50 A charging current to the high-voltage storage system

- 3-phase backup current possible with Fronius Backup Switch + Controller

- Storage can be expanded indefinitely

- Certified battery safety in accordance with VDE 2510-50

Product features System:

- AC rated power: 17.5 kW

- Mains connection: 3-phase

- AC mains voltage: 400 V

- Number of MPPT: 3

- Max. DC input voltage: 1000 V

- Max. DC input current: 28 A per MPPT

- DC overvoltage protection: Type 1+2

- AC overvoltage protection: Type 2

- DC connector type: PV - Stäubli MC4, Bat - Stäubli MC4 Evo Stor

- Number of battery connections: 1

- Communication: WLAN, Ethernet

- Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO

- Protection class: IP66

- Cooling: active

- Weight: 43.0 kg

- Dimensions: 865 x 574 x 279 mm (H x W x D)

- Warranty: 2.5 years + a further 5 years after free registration

Product features Memory:

- Battery capacity (usable): 12.8 kWh

- Storage type: High-voltage

- Nominal voltage: 512.0 V

- Extension time window: unlimited

- Number of storage modules in one unit: 2 to 4

- Number of units in parallel: up to 3

- Cell chemistry: LFP

- Communication: CAN, RS485

- COM connectors: RJ45

- BAT connectors: MC4

- Cooling: passive

- Protection class: IP55

- Dimensions: 1461 x 585 x 298 mm (HxWxD)

- Weight: BMS 15.0 kg, 5 x memory 38.0 kg each

Summary:

The Verto Plus is Fronius' entry into the small commercial segment. Top combination with the BYD HVS.

Scope of delivery:

- 1 x Fronius Verto Plus 17.5 Hybrid-WR (article 0159333)

- 1 x Fronius Smart Meter TS 65A-3 (article 0151650)

- 1 x BYD BCU HV BCU2.0 (article 0159471)

- 5 x BYD HVS storage module (article 0131385)

view more Show less

Technical details

Arc Fault Circuit Interrupter:	yes
Feed-in phases:	3
DC connector type:	MC4
Max. input voltage DC (V):	1.000,00
Battery voltage:	High Voltage
Usable capacity (kWh):	12,80
Number of independent MPPT (pcs):	3
Protection degree:	IP55
Display:	w/o display
Interfaces:	Ethernet, RS485, W-Lan
Max. AC power (kVA):	17,50
AC nominal power (kW):	17,50
Inverter type:	hybrid inverter
Commercial system:	no
Integrated DC switch:	yes
Offgrid usable:	no
Max. temperature ambient (°C):	50
Backup system full:	yes with supply
Max. short circuit current per MPPT (A):	50
MPP min. voltage range input (V):	210,00
MPP max. voltage range input (V):	870,00
Capacity extendable later:	yes without restriction
Start input voltage (V):	150
Max. output current (A):	26,50
Max. generator power DC (kWp):	26,25
Max. short circuit current (A) total:	150,00
Backup system light:	yes with supply
Max. discharging power (kW):	6,66
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	220, 230, 380, 400
Surge protection AC:	type 2
Min. temperature ambient (°C):	-10
Total number of string inputs:	6
Max. nominal charging power (kW):	6,66
Surge protection DC:	type 1 and type 2
Max. input current DC (A) total:	84,00
Battery voltage.:	High Voltage
Feed-in phases.:	3
Max. input current per MPPT (A).:	28
Battery cell chemistry:	LFP

Intrastat country of origin:	China
Intrastat product number (HS-code):	85076000
UN No.:	3480
Manufacturer:	BYD + Fronius
Classification code:	M4
Dangerous goods class:	9
Dangerous goods transportation category:	2
Dangerous goods description:	LITHIUM ION BATTERIES
Tunnel restriction code:	(E)
Dangerous goods packaging type:	4G
Brand:	BYD, Fronius
Compatible battery manufacturer:	BYD
Dangerous goods Weight (net) (kg):	193,500
Manufacturer item name:	HVS 12.8*Verto plus 17.5
Manufacturer part number: :	BYD HVS 12.8 + VERTO PLUS 17.5
