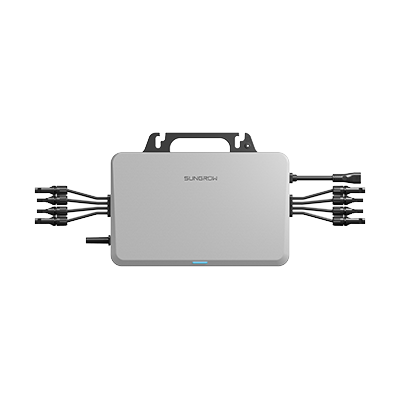

S1600S for roof systems
Product information
Following the motto "Small but mighty," Sungrow offers microinverters in three power classes for rooftop applications. Equipped with 0.45 to 1.6 kW and up to 4 MPP trackers and Wi-Fi, they offer maximum flexibility for all applications. Plug-and-play connectors on the AC and DC sides ensure quick and safe installation.
Product advantages:
• Flexible for a wide range of applications
Product features:
• AC power: 1.6 kW
• Feed-in phases: 1
• AC mains voltage: 230 V
• Number of MPP trackers: 4
• Max. DC input voltage: 16 – 60 V
• Max. DC input current: 16 A per MPPT
• DC connector type: Stäubli MC4
• AC surge protection: Type 2
• Interfaces: Wi-Fi
• Housing protection class: IP67
• Cooling: passive
• Dimensions: 271 x 361 x 55 mm (H x W x D)
• Weight: 7.5 kg
Technical details
Topology: | transformerless |
DC connector type: | MC4 |
Arc Fault Circuit Interrupter: | no |
Feed-in phases: | 1 |
Protection degree: | IP67 |
Max. input voltage DC (V): | 60,00 |
Max. generator power DC (kWp): | 16,00 |
Number of independent MPPT (pcs): | 4 |
Display: | with display |
Max. efficiency (%): | 96,20 |
European efficiency (%): | 95,40 |
Interface 1: | W-Lan |
AC nominal power (kW): | 1,60 |
Max. AC power (kVA): | 1,60 |
Interfaces: | W-Lan |
Min. voltage range input (V): | 16 |
Start input voltage (V): | 22 |
Max. temperature ambient (°C): | 65 |
MPP max. voltage range input (V): | 60,00 |
MPP min. voltage range input (V): | 16,00 |
Max. short circuit current (A) total: | 80,00 |
Max. output current (A): | 7,30 |
Cos phi.: | +/- 0,8, +/- 0,9 |
AC grid frequency (Hz).: | 50/60 |
AC grid voltage (V): | 220, 230, 240 |
Inverter type: | micro inverter |
Total number of string inputs: | 4 |
Max. input current DC (A) total: | 64,00 |
Min. temperature ambient (°C): | -40 |
AC grid frequency (Hz)..: | 50, 60 |
Feed-in phases.: | 1 |
Max. input current per MPPT (A).: | 16 |
Degree of protection IP: | IP67 |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85044086 |
Manufacturer: | Sungrow |
Brand: | Sungrow |
Manufacturer item name: | S1600S |
Supplier item: | ASP00042 |
Manufacturer.: | Sungrow |
Manufacturer part number: : | S1600S for roof systems |
Pack. material: | cardboard box |
Amount per Pallet: | 48 |
Weight without packaging (kg): | 7,500 |
Height without packaging (mm): | 271,00 |
Width without packaging (mm): | 361,00 |
Length without packaging (mm): | 55,00 |
Standard product warranty (yr): | 25 |
Warranty provider: | Sungrow |
Warranty provider.: | Sungrow |
