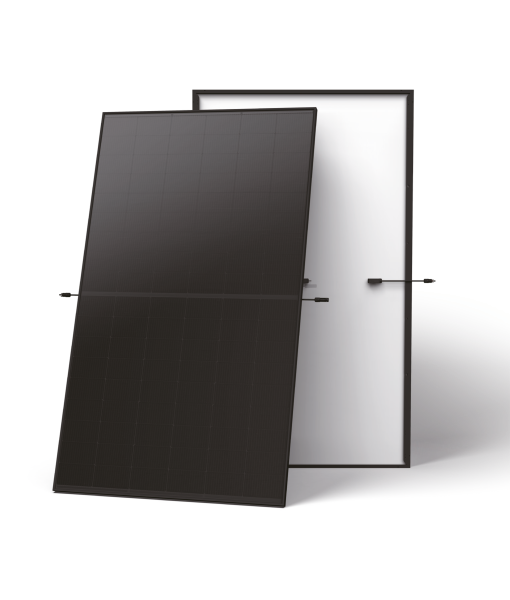

TSM-505NEG18R.25 Vertex S+

Trina Solar

Art-Nr. 0159149

TSM-505NEG18R.25 Vertex S+

Glass-glass, Full-Black, MC4-EVO 2

Manufacturer item number: TSM-505NEG18R.25

Product information

The TSM-NEG18R.25 solar module from Trina has an output of 505 Wp and is compatible with existing mainstream system components. Its combination of high module output, high string power and low-voltage design enables optimised energy yield. It delivers reliable performance even in low-light conditions, contributing to consistent energy generation throughout the day. The TSM-NEG18R.25 is ideal for use in harsh environments. It is particularly resistant to salt, ammonia, sand, high temperatures and high humidity, as well as fire and weather. Thanks to its compact size and light weight, it is particularly easy to handle and install. Visually, the module impresses with its elegant, full-black design, which blends harmoniously into any roof surface. Trina offers a 30-year performance warranty on this product.

Product advantages:

• Optimised energy yield

• Durable and reliable

• Easy to handle and install

• Elegant full-black design

Product features:

• Power rating Pmax: 505 Wp

• Cell type: monocrystalline

• Bifacial: no

• Cell contact: 16 busbars

• Frame type: framed

• Frame colour: black

• Backsheet colour (cell side): black

• Backsheet colour (roof side): white

• Max. system voltage: 1500 V

• Connector type: MC4 Evo 2

• Cable length: 1.4 m

• Glass thickness: 1.6 mm (front) / 1.6 mm (back)

• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)

• Fire protection class: IEC 61730

• Dimensions: 1961 x 1134 x 30 mm (L x W x H)

• Weight: 23.5 kg

• Warranty: 30 years performance warranty and 15 years product warranty

view more Show less

Technical details

Module fire performance.:	IEC 61730
Max. surface load capacity testload(Pa):	5400
Max. wind speed capacity testload(Pa):	2400
Number of cells (pieces):	108
Bifacial:	no
Busbars (pcs):	16
Backsheet colour roof side:	white
Backsheet colour cell side:	black
Protection degree:	IP68
Glass thickness front side (mm):	1,60
Integrated module optimization:	no
Length of cable minus (cm):	140,00
Length of cable plus (cm):	140,00
Short circuit current Isc (A):	15,89
Open circuit voltage Uoc (V):	40,30
Power tolerance:	+5 Wp
Max. reverse current (A):	30
Max. system voltage (V):	1500
Module structure:	glass-glass
Module efficiency (%):	22,70
Power rating Pmax (Wp):	505
Nominal voltage Umpp (V):	33,50
Nominal current Impp (A):	15,09
Frame colour:	black
Frame type:	framed
Connector type:	MC4 Evo 2
Temperature coefficient Isc (%/C):	0,0400
Temperature coefficient Pmpp (%/C):	-0,2900
Temperature coefficient Uoc (%/C):	-0,2400
Number of cells along:	18
Number of cells across:	6
Cell width (mm):	182,000
Cell length (mm):	105,000
Cell cut:	half cut
Cell type:	monocrystalline

Manufacturer.:	Trina Solar
Manufacturer:	Trina Solar
Manufacturer item name:	TSM-505NEG18R.25
Supplier item:	TSM-505NEG18R.25
Intrastat country of origin:	China
Intrastat product number (HS-code):	85414300
Brand:	Trina Solar
Certificate 1:	IEC/TÜV
Certificate 2:	Protection Class 2
Manufacturer part number: :	TSM-505NEG18R.25 Vertex S+

Amount Pal. p. Cont.:	24
Amount p. Cont.:	864
Amount per Pallet:	36
Pal. weight (kg):	846,00
Pal. dim. LxBxH (mm):	2000x1500x1200
Pack. material:	cardboard box

Width without packaging (mm):	1.134,00
Weight without packaging (kg):	23,500
Height without packaging (mm):	30,00
Length without packaging (mm):	1.961,00

Warranty provider.:	Trina Solar
Warranty provider:	Trina Solar
Performance warranty (yr):	30
Linear degression p.a. in %:	0,4
Product warranty (yr):	15
Standard product warranty (yr):	15
Initial % for linear warranty:	99
